GMR-1 High Speed LDPC Decoder

The LCD01G is a fully compatible GEO Mobile Radio (GMR-1) LDPC error control decoder.

Contact Provider Request Datasheet

Overview

The LCD01G is a fully compatible GEO Mobile Radio (GMR-1) LDPC error control decoder. GMR-1 is used by a number of mobile satellite communication systems. This is a high speed version of the standard, providing decoding speeds significantly greater that that required for individual channels. For a 500 MHz clock, decoding speeds ranges from 63 Mbit/s for the slowest code to 300 Mbit/s for the fastest code.

Key features

  • GEO Mobile Radio (GMR-1) compatible
  • Nominal code rates of 1/2, 2/3, 3/4, 4/5 and 9/10
  • Data lengths from 488 to 8880 bits
  • Optional QPSK, 16APSK and 32APSK demapping, descrambling and deinterleaving
  • Includes ping-pong input and output memories
  • Up to 500 MHz internal clock
  • Up to 300 Mbit/s with 30 decoder iterations
  • 8-bit log-likelihood-ratio (LLR) or 9-bit inphase and quadrature two's complement input data
  • Programmable signal points
  • Up to 256 iterations
  • Scaled min-sum Gauss-Seidel decoding algorithm
  • Optional power efficient early stopping
  • Parity check output
  • Xilinx 7-Series: 17,832 LUTs, 49 18KB BlockRAMs. Altera Stratix-II 17,853 ALUTs, 168 M4K; Cyclone IV: 30,930 LEs, 120 M9K; Cyclone V: 17,435 ALUTs, 121 M10K.
  • Available as EDIF and VHDL core for Xilinx FPGAs under SignOnce IP License. Custom ASIC, Intel/Altera, Lattice, and Microchip/Microsemi/Actel cores available on request.
  • Free simulation software

Block Diagram

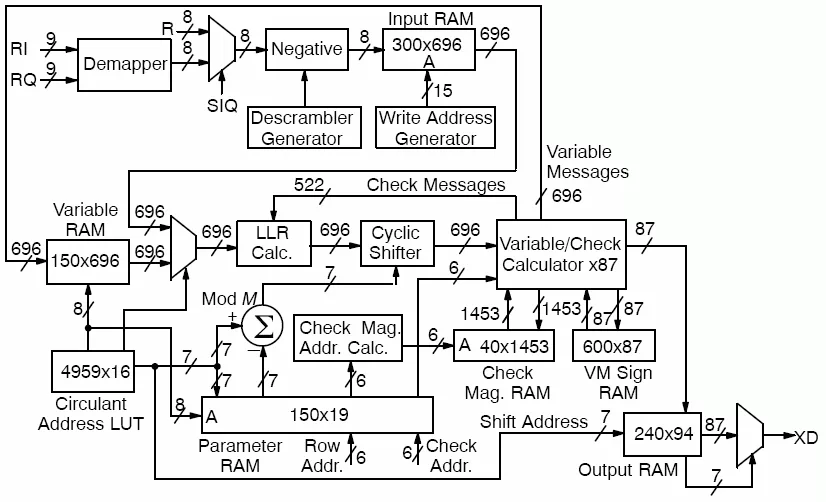

LCD01G block diagram

Applications

  • Mobile satellite communications

What’s Included?

  • All Licenses
    • EDIF Core for Virtex-II, Spartan-3, Virtex-4
    • VHDL Core for Virtex-5, Spartan-6, Virtex-6, 7-Series, UltraScale, UltraScale+
    • Test vector generator
  • ASIC License
    • VHDL ASIC Core

Specifications

Identity

Part Number
LCD01G
Vendor
Small World Communications
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Small World Communications

Learn more about Channel Coding IP core
