Vendor: Certus Semiconductor Category: High-Speed

GF12 - 0.8V SLVS Rad-Hard Transceiver in GF 12nm

A radiation-hardened GlobalFoundries 12nm LP/LP+ 0.8V SLVS Transceiver.

GlobalFoundries 12nm LP View all specifications

Overview

A radiation-hardened GlobalFoundries 12nm LP/LP+ 0.8V SLVS Transceiver.

This SLVS I/O Library delivers a robust, high-performance solution for high-speed differential signaling in GlobalFoundries 12nm process technology. Designed for optimal signal integrity, this 0.8V SLVS transceiver features fast rise and fall times, low propagation delay, and built-in pre-emphasis to enhance signal quality over longer traces. With support for data rates up to 3Gbps, it enables reliable, low-power communication while maintaining excellent noise immunity. Engineered with a focus on flexibility and ease of integration, the SLVS I/O library is fully compliant with GlobalFoundries design rules and includes built-in ESD protection (+2kV HBM, +500V CDM) for enhanced reliability. Engineered with a Rad-Hard by Design (RHBD) approach, this IP has been proton-tested to 64 MeV with a flux exceeding 1.3E+09 and is latch-up proven to 200mA across -40°C to 125°̌C, ensuring robust immunity against TID, SEE, and SEL effects.

 Process Details

Parameter Value
Core Device 0.8V
I/O Device 1.8V Gate Oxide
BEOL 1P13M
Top Routing LB

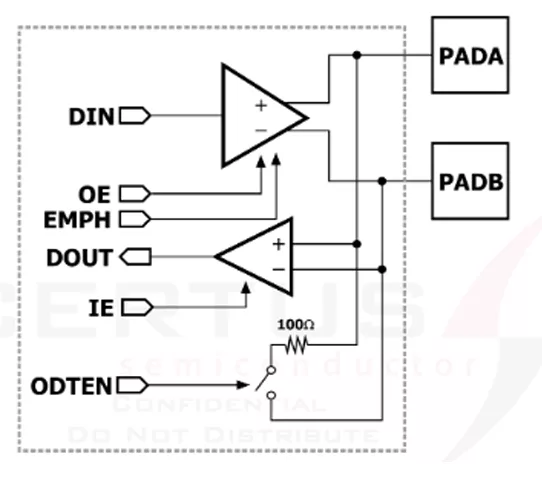

Block Diagram

GF12 - 0.8V SLVS Rad-Hard Transceiver in GF 12nm block diagram

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 12nm LP —

Specifications

Identity

Part Number
GF12 - 0.8V SLVS Rad-Hard Transceiver in GF 12nm
Vendor
Certus Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Certus Semiconductor
HQ: United States
