FracN/SSCG PLL on GLOBALFOUNDRIES 12LP+

The low power Fractional-N / SSCG PLL addresses power sensitive designs required for IOT, mobile and other low power applications…

Contact Provider Request Datasheet
GlobalFoundries 12nm LP View all specifications

Overview

The low power Fractional-N / SSCG PLL addresses power sensitive designs required for IOT, mobile and other low power applications needing non-integer clock multiplication, programmable clock synthesis, clock tracking or fine tuning on-the-fly, and Spread Spectrum clock generation. The PLL is designed for digital logic processes and use robust design techniques to work in noisy SoC environments, such as high speed communication to low power consumer to memory interfaces.

The programmable Fractional-N divider allows the PLL to lock to an incoming clock source and produce an output clock with a non-integer multiplication factor. The generated clock can be locked to the input source yet adjusted to a fine-degree of precision, and may be adjusted on-the-fly to maintain a relatively drifting local clock need. The updatable programmable fractional feedback divider is provided for this purpose. “On the fly” capability means the frequency transition and re-obtaining lock process for small frequency adjustment is glitch free and contains limited frequency over/undershoot.

Furthermore, itis a requirement by the FCC and equivalent international bodies that electronic devices including game-consoles, PCs, and high speed compute servers, limit Electromagnetic Interference (EMI) when they operate. The Spread Spectrum function of the PLL is capable of generating precise clock spreads (using a triangular modulation profile) that help reduce EMI. Programmable options allow the user to control the degree of spread in fine steps of modulation frequency and depth.

The PLL macro is implemented in Analog Bits’ proprietary architecture that uses core and 1.8V IO devices. In order to minimize noise coupling and maximize ease of use, the PLL incorporates a proprietary ESD structure, which is proven in several generations of processes. Eliminating band-gaps and integrating all on-chip components such as capacitors and ESD structures, helps the jitter performance significantly and reduces stand-by and operational power.

PLL Operational Range Description Symbol Min Typ Max Units Input Frequency FREF 10 300 MHz Post-Divide Reference Frequency (Integer mode) FPFD 10 200 MHz Post-Divide Reference Frequency (Fractional mode) FPFD 5 7.5 MHz VCO Frequency FVCO 1200 6000 MHz Output Frequency FOUT 20 3000 MHz Output Duty Cycle tDO 48 52 % Modulation Frequency Range 6.11 234 kHz Modulation Depth Range (down-spread) -4 0 % Modulation Depth Range (center-spread) -2 2 % Modulation Depth Control (step size) 0.25 1.18 % Area A 0.024 sq. mm Total Power IDD 6 mA Operational Voltage (Digital) VDIG 0.72 0.8 0.88 V Operational Voltage (Analog) VANA 1.62 1.8 1.98 V Operational Temperature TOP -40 25 125 C

Key features

  • Electrically Programmable PLL with Fractional-N divider and Spread Spectrum Clock Generation
  • Wide Ranges of Input and Output Frequency for diverse clocking needs
  • Ability to generate precise system clocks synchronized to track remote sources
  • Very fine precision: near 1 part per billion resolution
  • Fully integrated 32-bit datapath (8-bit integer plus 24-bit fractional)
  • Low power consumption
  • Small area footprint
  • Spread Spectrum tracking capability
  • Requires no additional on-chip components or band-gaps, minimizing power consumption

Block Diagram

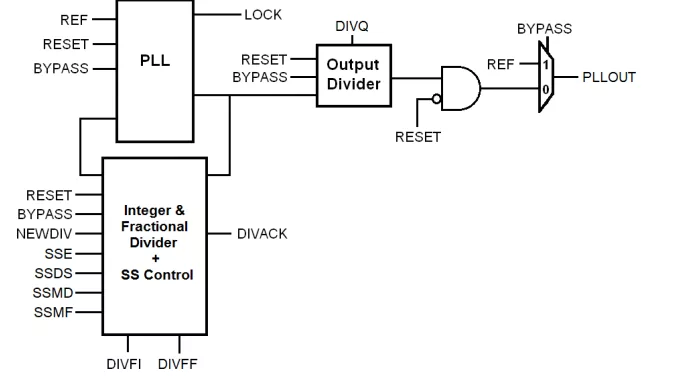

FracN/SSCG PLL on GLOBALFOUNDRIES 12LP+ block diagram
