FPD LVDS Display Interface, 1 Port / 2 Port LCD Panel

The DB-FPD-LVDS-TX LVDS Display Interface IP Core interfaces parallel 18-bit/24-bit RGB Pixel Data with display timing VSYNC, HSY…

Contact Provider Request Datasheet

Overview

The DB-FPD-LVDS-TX LVDS Display Interface IP Core interfaces parallel 18-bit/24-bit RGB Pixel Data with display timing VSYNC, HSYNC, Data Enable, and Pixel Clock to a FPD LVDS compliant display panel via 3 or 4 or 5 LVDS Differential Data Pairs and 1 LVDS Differential Clock Pair.

The DB-FPD-LVDS-TX LVDS licenses with the DB9000 Display Controller family IPs, for the licensing options of driving LVDS Interfaces panels.

Key features

  • Supports 3 and 4 and 5 data and 1 clock LVDS differential pairs
  • 18 / 24 bits-per-pixel (typically RGB or YCbCr)
  • Example Range of Video Formats:
    • HD 1280x720p
    • Full HD 1920x1080p
    • Cinema Full HD 2560x1080p
    • UHD 4K x 2K 3840x2160p
  • Single, Dual, Quad Port LVDS Panel Support Provided
  • Supports standardized FPD-Link Panels, V-by-One HS Drivers
  • Compatible with commercial LVDS ICs:
    • SN65LVDS*, SN75LVDS*,DS90CR*, DS90UR*, THC63LVD
  • Supports 600-800 Mbps per data pair (Technology Dependent)
  • Differential Driver per data pair supplied by user from foundry technology library
  • Fully-synchronous, synthesizable Verilog RTL core, with rising-edge clocking, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASIC design flows.

Block Diagram

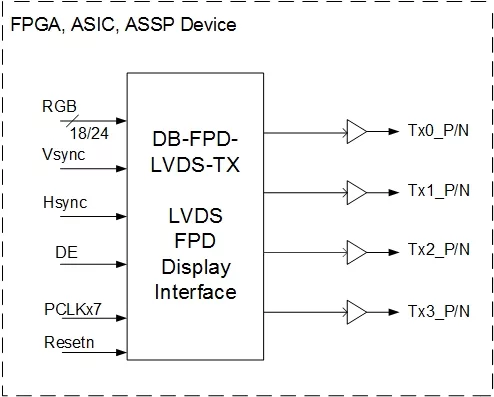

DB-FPD-LVDS-TX block diagram

What’s Included?

  • Verilog RTL Source or technology-specific netlist.
  • Comprehensive testbench suite with expected results.
  • Synthesis scripts.
  • Installation & Implementation Guide.
  • Technical Reference Manual.
