Vendor: M31 Technology Corp. Category: Single-Protocol PHY

eUSB2 v1.1 Dual-Role, repeater/native mode PHY, TSMC N7, 1.8V or 1.2V, N/S orientation

Embedded USB2 (eUSB2) is a new generation specification proposed by USB Association that extends USB 2.0 specification and uses 1…

Contact Provider Request Datasheet
TSMC 7nm N7 View all specifications

Overview

Embedded USB2 (eUSB2) is a new generation specification proposed by USB Association that extends USB 2.0 specification and uses 1.2V/1.0V as the interface operating voltage. M31 delivers the IP with an extremely compact area and low power consumption by using a unique hybrid analog/digital architecture. The eUSB2 IP supports not only native mode but also repeater mode, to make the application more flexible.

Key features

  • Fully compliant with Embedded Universal Serial Bus 2.0 (eUSB) electrical specification
  • Compliant with UTMI+ specifications (High-speed, Full-speed, and Low-speed functions)
  • Support clock inputs from 10/12/25/30/19.2/24/32/38.4MHz clock source
  • Support repeater and native modes
  • Accessible control signals provide users with specific optimization of critical parameters

Block Diagram

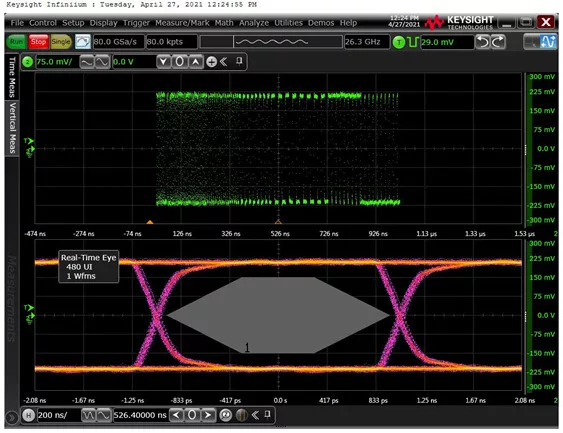

eUSB2 v1.1 Dual-Role, repeater/native mode PHY, TSMC N7, 1.8V or 1.2V, N/S orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 7nm N7 —

Specifications

Identity

Part Number
eUSB2 v1.1 Dual-Role, repeater/native mode PHY, TSMC N7, 1.8V or 1.2V, N/S orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.
