eUSB 2.0 PHY - TSMC N5 x1, North/South (vertical) poly orientation
The vendor provides designers with silicon-proven, configurable eUSB2 PHYs that are compliant with the USB-Implementers Forum (US…
Overview
The vendor provides designers with silicon-proven, configurable eUSB2 PHYs that are compliant with the USB-Implementers Forum (USB-IF) eUSB2 and USB 2.0 specifications. The eUSB2 PHY IP has industry's best combination of low area and low power in leading process technologies from 7nm and below.
The eUSB2 IP is built on years of customer successes with the vendor’s silicon-proven USB PHY product line, which has been ported to over 100 process nodes ranging from 180nm to 5nm.
With over 3,000 design wins and over 4 billion silicon-proven units shipped, the vendor’s USB IP solution, consisting of digital controllers, PHYs, IP subsystems, and verification IP, enables designers to lower integration risk and speed time-to-market.
Key features
- Designed for 7nm processes and below
- Supports the USB 2.0 protocol and High Speed, Full Speed, and Low Speed data rates
- eUSB2 PHYs supports USB 2.0, 3.0, 3.1 and 3.2 Device, Host and Dual Role configurations

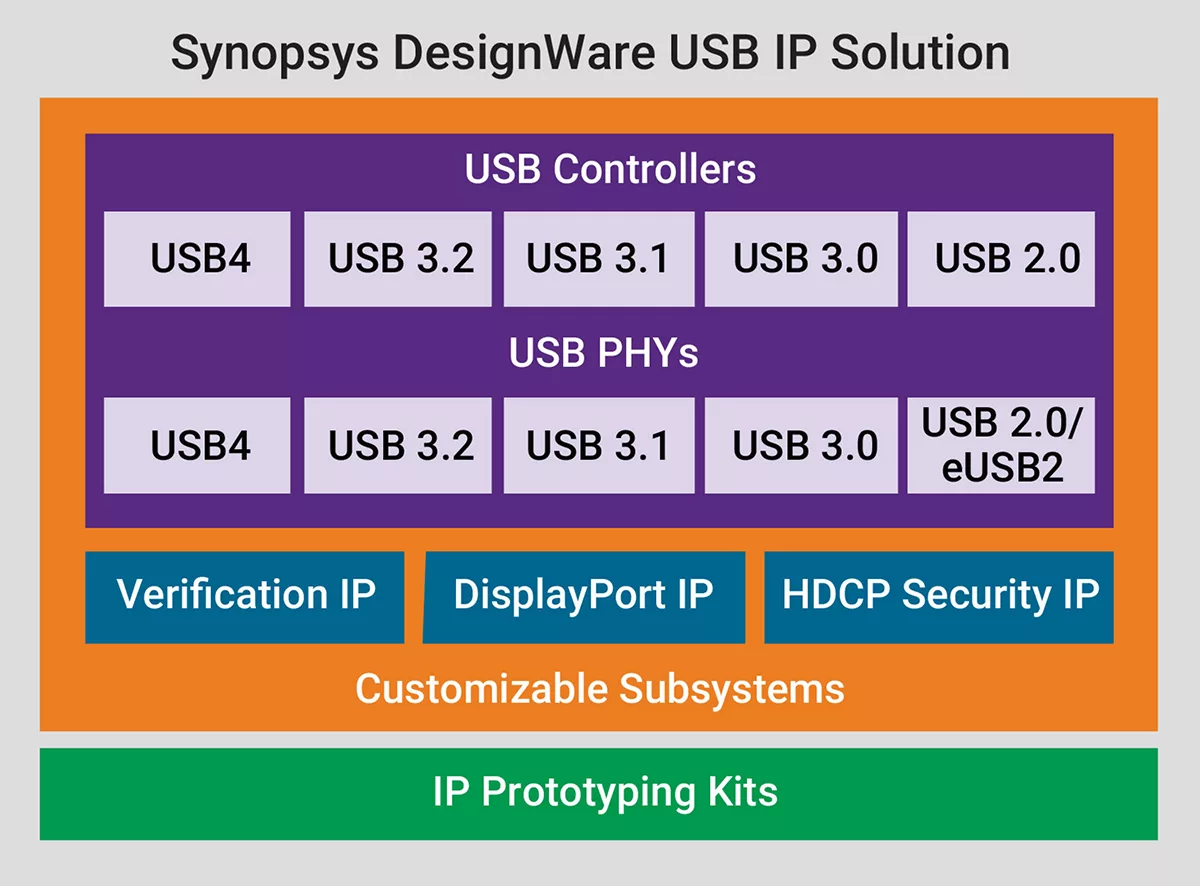

Block Diagram
dwc_eusb2_phy_tsmc5ff12_x1ns block diagram
Specifications
Identity
Part Number
dwc_eusb2_phy_tsmc5ff12_x1ns
Vendor
Synopsys, Inc.
Type
Silicon IP
Standards & Interfaces
Supported Standards
USB 2.0
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
