DVB-S2/DVB-S2X Demapper/LDPC/BCH Decoder

The LCD01D is a high speed decoder for the DVB-S2/DVB-S2X low density parity check (LDPC) and Bose, Chaudhuri and Hocquenghem (BC…

Contact Provider Request Datasheet

Overview

The LCD01D is a high speed decoder for the DVB-S2/DVB-S2X low density parity check (LDPC) and Bose, Chaudhuri and Hocquenghem (BCH) code standard. All modulation and coding combinations are supported.

Key features

  • Digital Video Broadcasting Second Generation (DVB-S2) and Extensions (DVB-S2X) compatible
  • Nominal code rates from 1/5 to 9/10
  • Data lengths from 2512 to 58192 bits
  • Optional ?/2 BPSK SF2, ?/2 BPSK, QPSK, 8PSK, 8APSK, 16APSK, 32APSK, 64APSK, 128APSK and 256APSK demapping and deinterleaving with 11-bit inphase and quadrature two's complement input
  • Optional interleaved or deinterleaved 8-bit log-likelihood-ratio (LLR) input
  • Includes ping-pong input and output memories, BCH decoder and optional descrambler
  • Up to 323 MHz internal clock
  • Up to 290 Mbit/s with 30 decoder iterations
  • Up to 256 iterations
  • Programmable signal points
  • Scaled min-sum modified Gauss-Seidel LDPC decoding algorithm
  • Optional power efficient early stopping
  • LDPC parity check and BCH error location polynomial degree output
  • ~42,000 LUTs and 287 RAMB18s for Xilinx Virtex-5, Virtex-6, 7-Series, UltraScale and UltraScale+ FPGAs. ~53,000 ALUTs and 436 M10Ks for Altera Cyclone V.
  • Available as VHDL core for Xilinx FPGAs under SignOnce IP License. ASIC, Intel/Altera, Lattice and Microsemi/Actel cores available on request.
  • Free simulation software

Block Diagram

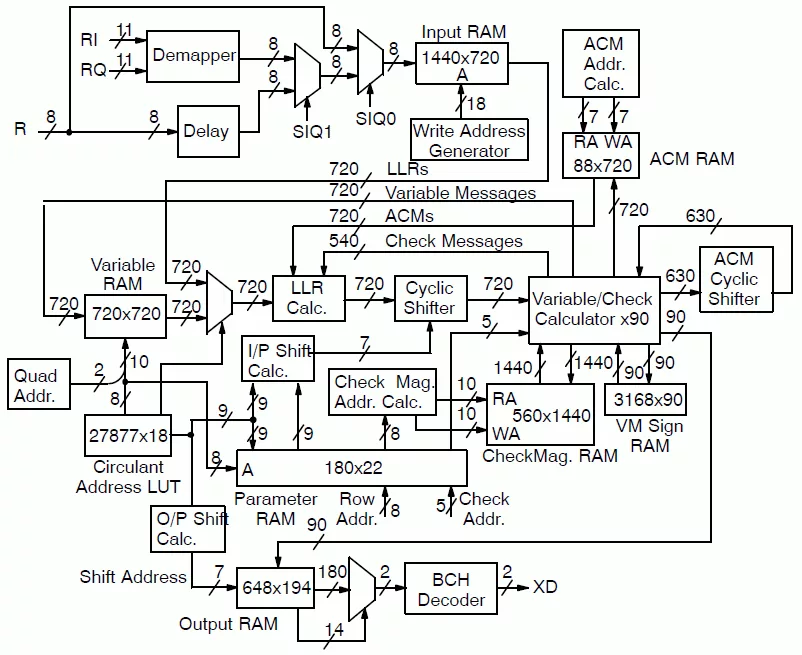

LCD01D block diagram

What’s Included?

  • All Licenses
    • Xilinx VHDL Core
    • Test vector generator
  • ASIC License
    • VHDL ASIC Core

Specifications

Identity

Part Number
LCD01D
Vendor
Small World Communications
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Small World Communications
