Vendor: T2M GmbH Category: Single-Protocol PHY

Display Port v1.4 Tx PHY & Controller IP, Silicon Proven in TSMC 28HPC+

The DisplayPort transmitter PHY version 1.4 supports data rates between 1.62Gbps (RBR) to 5.4Gbps (HBR2).

Contact Provider Request Datasheet
TSMC 28nm HPC+ In Production View all specifications

Overview

The DisplayPort transmitter PHY version 1.4 supports data rates between 1.62Gbps (RBR) to 5.4Gbps (HBR2). built-in equalizer with programmable analogue features, 100-ohm termination resistors, and common-mode biassing the CDR bandwidth, the regulator voltage, the BGR voltage, and the terminator resistance Support 1.8V/0.9V power supplies for internal analogue signal monitoring and PLL testing.

Key features

  • eDP version 1.4a / DP version 1.4 compliant transmitter
  • Supports HDCP1.4 and HDCP2.2(Optional)
  • Supports Forward Error Correction (Optional)
  • Consists of configurable (4/2/1) link channels and one AUX channel
  • Supports 1.62/2.7/5.4/8.1Gbps (HBR3) bit rate and all recommended link rate (ie 2.16Gbps etc)
  • Supports main link operation with 1 or 2 or 4 lanes
  • Supports both Default and Enhanced Framing Mode
  • Supports SST mode
  • Supports video packet and audio packet (8ch max)
  • Supports both Normal and Alternate Scrambler Seed Reset
  • Supports E-EDID data reading via I2C-over-AUX transaction
  • Supports Video test pattern generator (compliant with DP link CTS v1.2)
  • Configuration registers programmable via AMBA interface
  • Silicon Proven in TSMC HPC+

Block Diagram

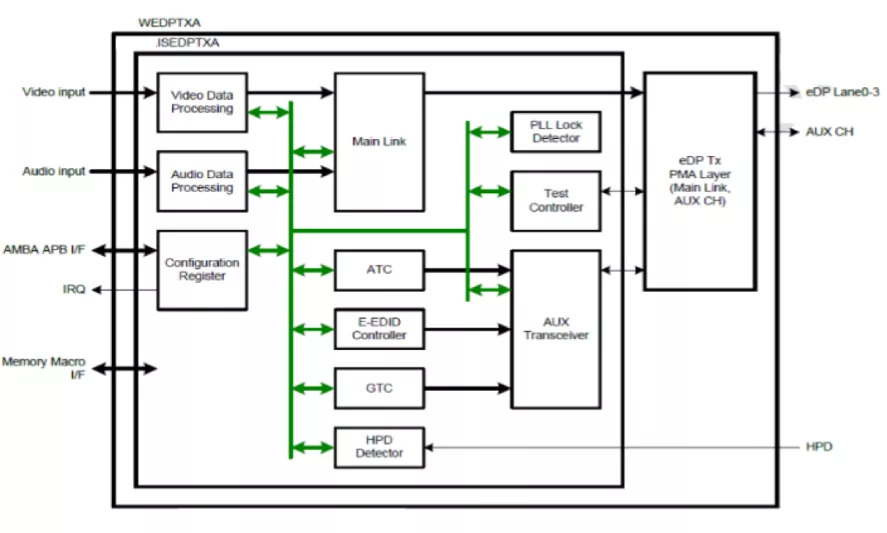

DisplayPort 1.4 Tx PHY IP in 28HPC+ block diagram

What’s Included?

  • Verilog RTL or netlist source code of LINK controller.
  • Abstracted timing models for synthesis and STA
  • Timing constrains for synthesis and physical layout
  • Behavioural Verilog Model, simulation test bench, run control scripts, and test stimuli
  • Physical design database
  • Integration guidelines
  • Reference software sample code

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

Specifications

Identity

Part Number
DisplayPort 1.4 Tx PHY IP in 28HPC+
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
