D2D Controller addon for D2D SR112G PHY with CXS interface

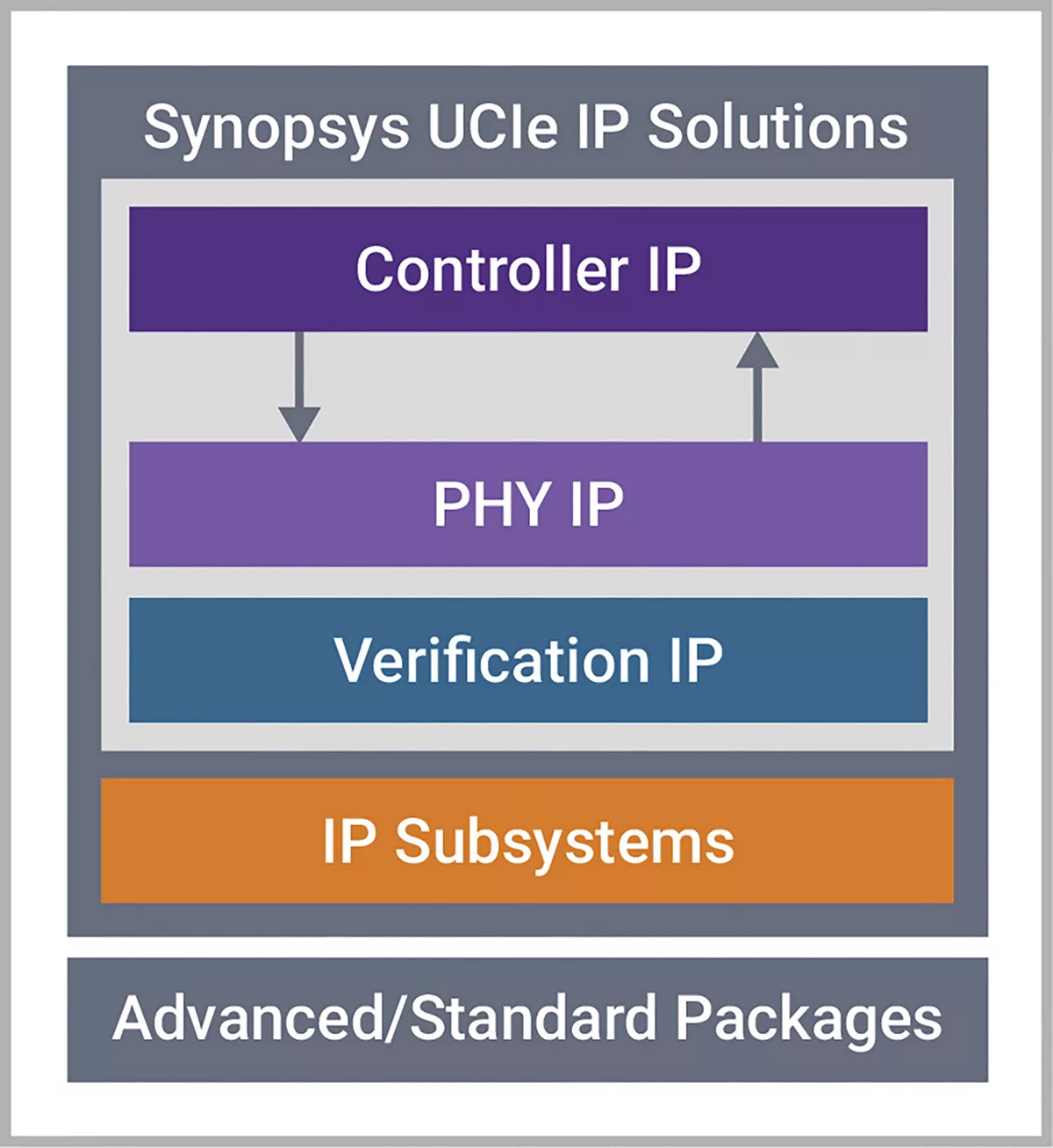

The Die-to-Die Controller IP, optimized for latency, bandwidth, power, and area, enables efficient inter-die connectivity in server, AI accelerator, networking, and high-performance computing SoCs. The controller interoperates with the 112G XSR PHY to deliver a complete Die-to-Die solution for a seamless connection between the on-die interconnect fabrics in both dies via the standard CXS port. The Die-to-Die Controller uses a FLIT-based architecture to minimize latency. It implements an advanced error detection and correction mechanism including Cyclic Redundancy Check (CRC) and optional latency-optimized Forward Error Correction (FEC) to reduce Bit Error Rate (BER) to a very low level for PAM-4 or NRZ PHY signaling. The embedded retry protocol enables very low latency, error-free links between two dies.

The Die-to-Die Controller optimizes system performance by supporting two configurations for coherent and non-coherent data traffic between the SoC bus and each die. The latency-optimized configuration interfaces with the SoC fabric via a FLIT-based interface (Arm® CXS). The Die-to-Die Controller can be extended to support any aggregate bandwidth between the two dies using bifurcation into multiple parallel links.

• Low Latency controller for die-to-die connectivity
• Supports PAM-4 and NRZ PHY signaling mode in all data rates
• Reduces BER with optional FEC configurations
• Supports Arm® AMBA® CXS interface
• Supports coherent CXL/CCIX and noncoherent data traffic over die-to-die links
• Enables complete NoC-to-NoC interface between two dies
