Vendor: CoreHW Category: PLL

Dual WideBand Frequency Synthesizer with Integrated VCO and Loop Filter - GlobalFoundries 55nm

CorePLL is a wideband phase-locked loop (PLL) system for 2G (GSM) 3G and 4G (LTE), including Carrier Aggregation (CA) for 3GPP Re…

Contact Provider Request Datasheet
GlobalFoundries 55nm Silicon Proven View all specifications

Overview

CorePLL is a wideband phase-locked loop (PLL) system for 2G (GSM) 3G and 4G (LTE), including Carrier Aggregation (CA) for 3GPP Rel11 and Rel12. CorePLL frequency synthesis sub-system enables single transceiver LTE CA. CorePLL consists of two fully integrated PLLs with integrated VCOs and loop filters. CorePLL is versatile frequency synthesizer so lution with small size, high-performance and ultra low-power. Power consumption is only 18mA from 1.35V supply (24mW). CorePLL supports variety of different systems and ref erence clock frequencies. CorePLL is imple mented using standard 55nm CMOS process. CorePLL is available in QFN 6x6mm package. PLL1 and PLL2 synthesizers are also available as IPs.

Key features

  • PLL1 for LTE with VCO1
  • PLL2 for LTE&GSM with VCO1 and VCO2
  • Small size, high-performance and low-power (24mW)
  • Various power and performance modes
  • Power supply 1.35V and 1.8V
  • Reference signal (FREF) from 10MHz to 400MHz
  • Programmable reference divider (/1, /2, /4 & /8)
  • Output RF signal (FOUT) from 1.333GHz up to 8GHz
  • IQ Dividers (/2 & /4) for RX&TX down-to 333MHz
  • Integrated loop filter with adjustable loop response
  • Integrated bandgap reference and LDOs
  • SPI control bus (IO) and test IO
  • Digital calibrations and lock detection
  • Fast settling <100 μs

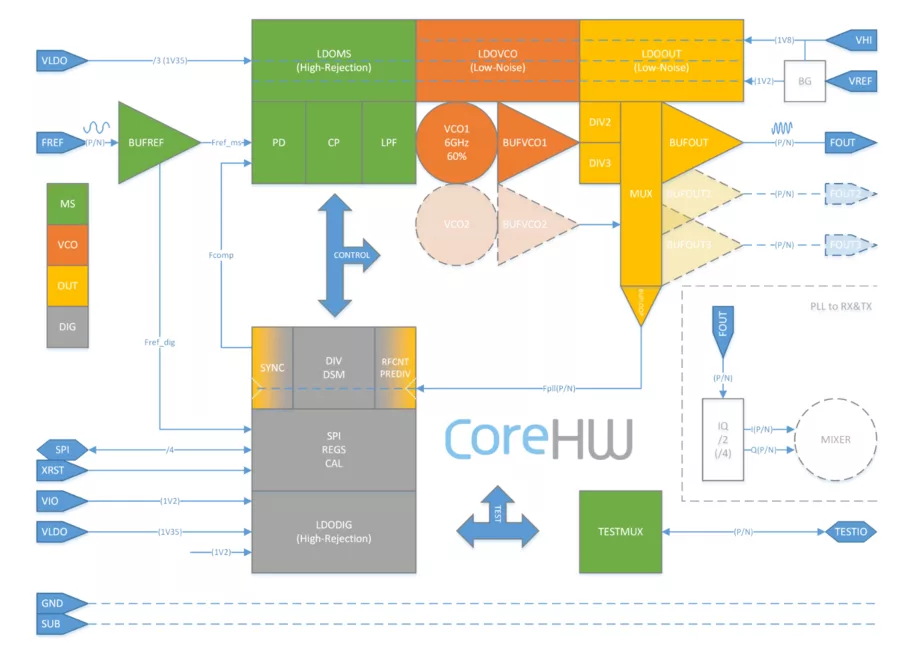

Block Diagram

CorePLLCAGF55 block diagram

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 55nm 55 550 nm Silicon Proven

Specifications

Identity

Part Number
CorePLLCAGF55
Vendor
CoreHW
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

CoreHW
HQ: Finland
Contact CoreHW
