Vendor: Analog Bits Inc. Category: PLL

Core Powered FracN/SSCG PLL on TSMC CLN7FF

The low power Fractional-N SSCG PLL addresses power sensitive designs required for IOT, mobile and other low power applications n…

Contact Provider Request Datasheet
TSMC 7nm N7FF View all specifications

Overview

The low power Fractional-N SSCG PLL addresses power sensitive designs required for IOT, mobile and other low power applications needing non-integer clock multiplication, programmable clock synthesis, and clock tracking or fine tuning on-the-fly. The PLL is designed for digital logic processes and use robust design techniques to work in noisy SoC environments, such as high speed communication to low power consumer to memory interfaces.

The programmable Fractional-N divider allows the PLL to lock to an incoming clock source and produce an output clock with a non-integer multiplication factor. The generated clock can be locked to the input source yet adjusted to a fine-degree of precision, and may be adjusted on-the-fly to maintain a relatively drifting local clock need. The updatable programmable fractional feedback divider is provided for this purpose. “On the fly” capability means the frequency transition and re-obtaining lock process for small frequency adjustment is glitch free and contains limited frequency over/undershoot.

Furthermore, itis a requirement by the FCC and equivalent international bodies that electronic devices including game-consoles, PCs, and high speed compute servers, limit Electromagnetic Interference (EMI) when they operate. The Spread Spectrum function of the PLL is capable of generating precise clock spreads (using a triangular modulation profile) that help reduce EMI. Programmable options allow the user to control the degree of spread in fine steps of modulation frequency and depth.

The PLL macro is implemented in Analog Bits’ proprietary architecture that uses core and 1.8V IO devices. In order to minimize noise coupling and maximize ease of use, the PLL incorporates a proprietary ESD structure, which is proven in several generations of processes. Eliminating band-gaps and integrating all on-chip components such as capacitors and ESD structures, helps the jitter performance significantly and reduces stand-by and operational power.

PLL Operational Range Description Symbol Min Typ Max Units Input Frequency FREF 5 600 MHz Post-Divide Reference Frequency (Integer mode) FPFD 7.5 200 MHz Post-Divide Reference Frequency (Frac/SS mode) FPFD 5 7.5 MHz VCO Frequency FVCO 8000 MHz Output Frequency FOUT 7.5 4000 MHz Output Duty Cycle tDO 45 55 % Area A 0.012 sq. mm Total Power IDD 5.5 mA Operational Voltage (Digital) VDIG 0.675 0.75 0.825 V Operational Voltage (Analog) VANA 1.62 1.8 1.98 V Operational Temperature TOP -40 25 125 C

Key features

  • Electrically Programmable PLL with Fractional-N divide and Spread Spectrum Clock Generation
  • Wide Ranges of Input and Output Frequency for diverse clocking needs
  • Very fine precision: near 1 part per billion resolution
  • Fully integrated 32-bit datapath (8-bit integer plus 24-bit fractional)
  • Ability to generate precise system clocks synchronized to track remote sources
  • Implemented with Analog Bits’ proprietary architecture
  • Low power consumption
  • Small area footprint
  • Excellent jitter performance with optimized noise rejection

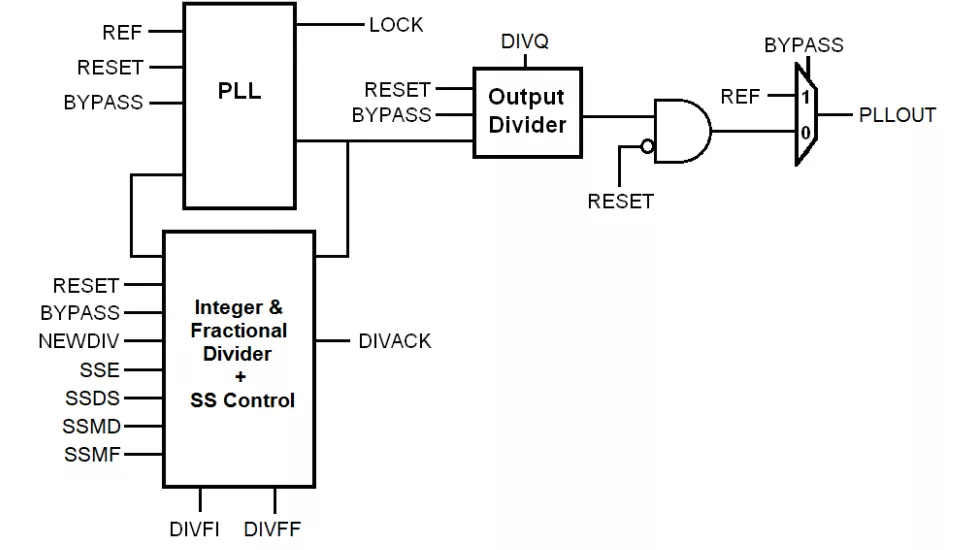

Block Diagram

Core Powered FracN/SSCG PLL on TSMC CLN7FF block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 7nm N7FF —

Specifications

Identity

Part Number
Core Powered FracN/SSCG PLL on TSMC CLN7FF
Vendor
Analog Bits Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
