Vendor: Cadence Design Systems, Inc. Category: PCI Express

Controller for PCIe

Application-optimized, high-performance controller IP for PCIe

Contact Provider Request Datasheet

Overview

The Cadence® Controller IP for PCI Express® (PCIe®) is architected to quickly and easily integrate into any SoC, and addresses a wide range of high-performance as well as low-power requirements for a broad spectrum of applications, including high-performance computing (HPC), artificial intelligence and machine learning (AI/ML), supercomputing platforms, storage solutions, server applications, and mobile platforms. The controller area is optimized for each application to provide you with the best power and performance.

Key features

  • The Cadence Controller IP for PCIe is compliant with PCIe 6.0, 5.0, 4.0, 3.1, 2.1, 1.1 protocol versions and supports the latest ECNs including IDE/DOE so that applications can benefit from the latest updates to the specifications
  • The controller IP is available as root-port, end-point, or dual-mode to allow for versatile use cases, and multifurcation support allows applications to build configurations that can support configurations from 1x16 to 16x1 easily
  • The controller provides SR-IOV support with 256 functions and 4K payload size, scalable I/O virtualization with PASID is also available
  • Benchmarked at 95% of theoretical performance, superscalar design for high throughput and low latency at all data rates, applications have a choice of client interfaces for maximum performance

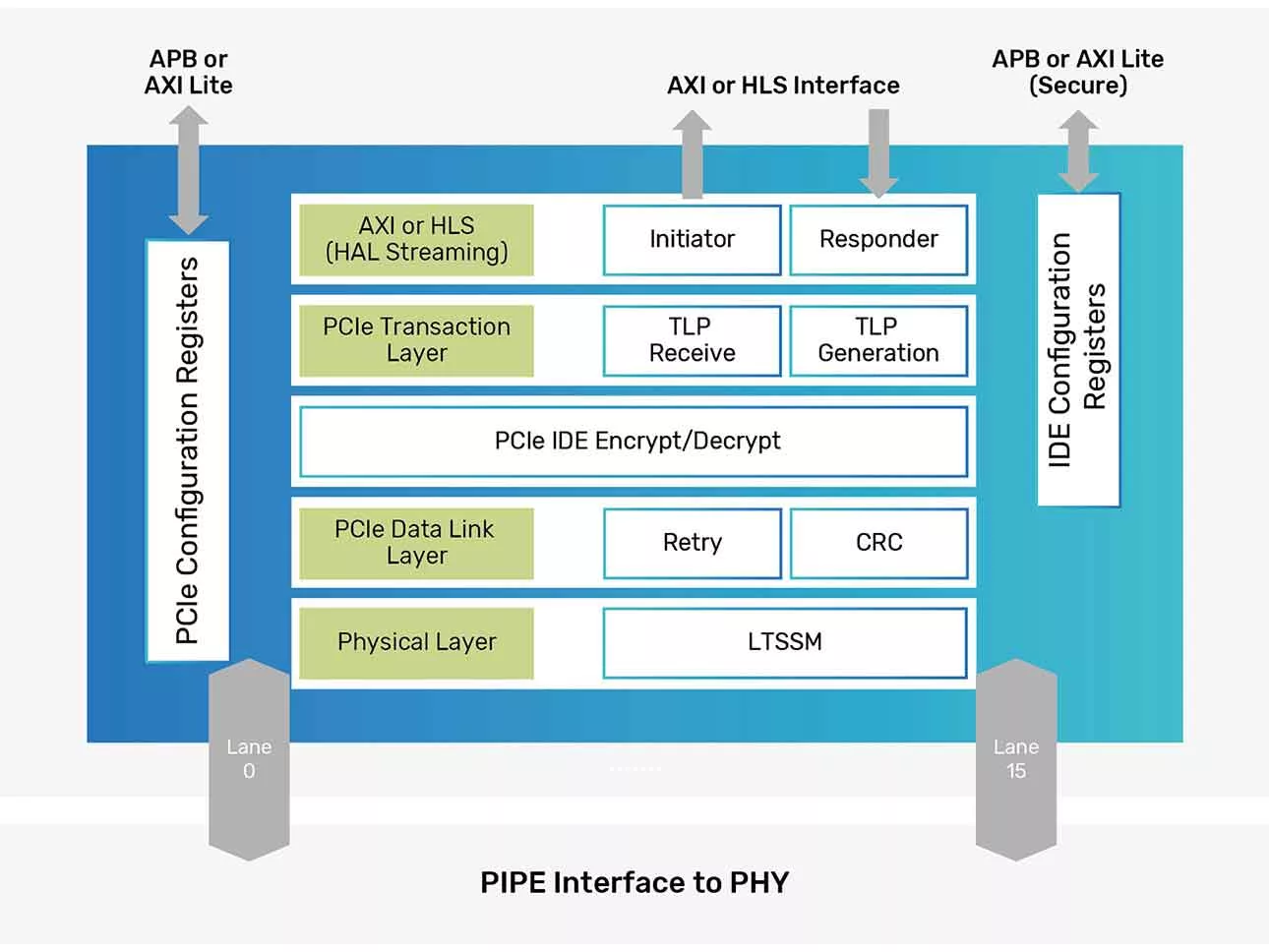

Block Diagram

Controller for PCIe block diagram

Benefits

  • Mature: Compliance-proven IP, with customer SoCs in volume production over many generations
  • Application Optimized: IP features optimized for key verticals like storage, automotive, enterprise, and AI/ML, configured to your specific needs with minimal gate count
  • Ease of Use: Fully verified pre-integrated IP delivery, with firmware and testbenches for rapid bring-up

Applications

  • Automotive,
  • Communications,
  • Consumer Electronics,
  • Data Processing,
  • Industrial and Medical,
  • Military/Civil Aerospace,
  • Others

What’s Included?

  • Clean, readable, synthesizable RTL Verilog files
  • Verification testbench example with integrated stimulus and monitors
  • Verification test-plan and reports
  • Register descriptions
  • Synthesis and STA scripts

Specifications

Identity

Part Number
Controller for PCIe
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Cadence Design Systems, Inc.
