PIPE Verification IP
The PIPE Verification IP provides an effective & efficient way to verify the PIPE components of an IP or SoC.
Overview
The PIPE Verification IP provides an effective & efficient way to verify the PIPE components of an IP or SoC. The VIP is fully compliant with PIPE Specification The VIP is light weight with easy plug-and-play components so that there is no hit on the design cycle time.
Key features
- Utilizes 8-bit, 16-bit, or 32-bit parallel interfaces to transmit and receive PCIe/USB data.
- Support of direct disparity control for use in transmitting compliance patterns.
- 8b/10b encoding and decoding, and error indication (original PIPE).
- 128b/130b encoding and decoding, and error indication (original PIPE).
- Supports Polarity (original PIPE).
- Supports Lane margining at the receiver.
- Supports random reset for all layers of PIPE VIP.
- Functional coverage for complete PIPE features.
- Monitors, detects and notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
Block Diagram

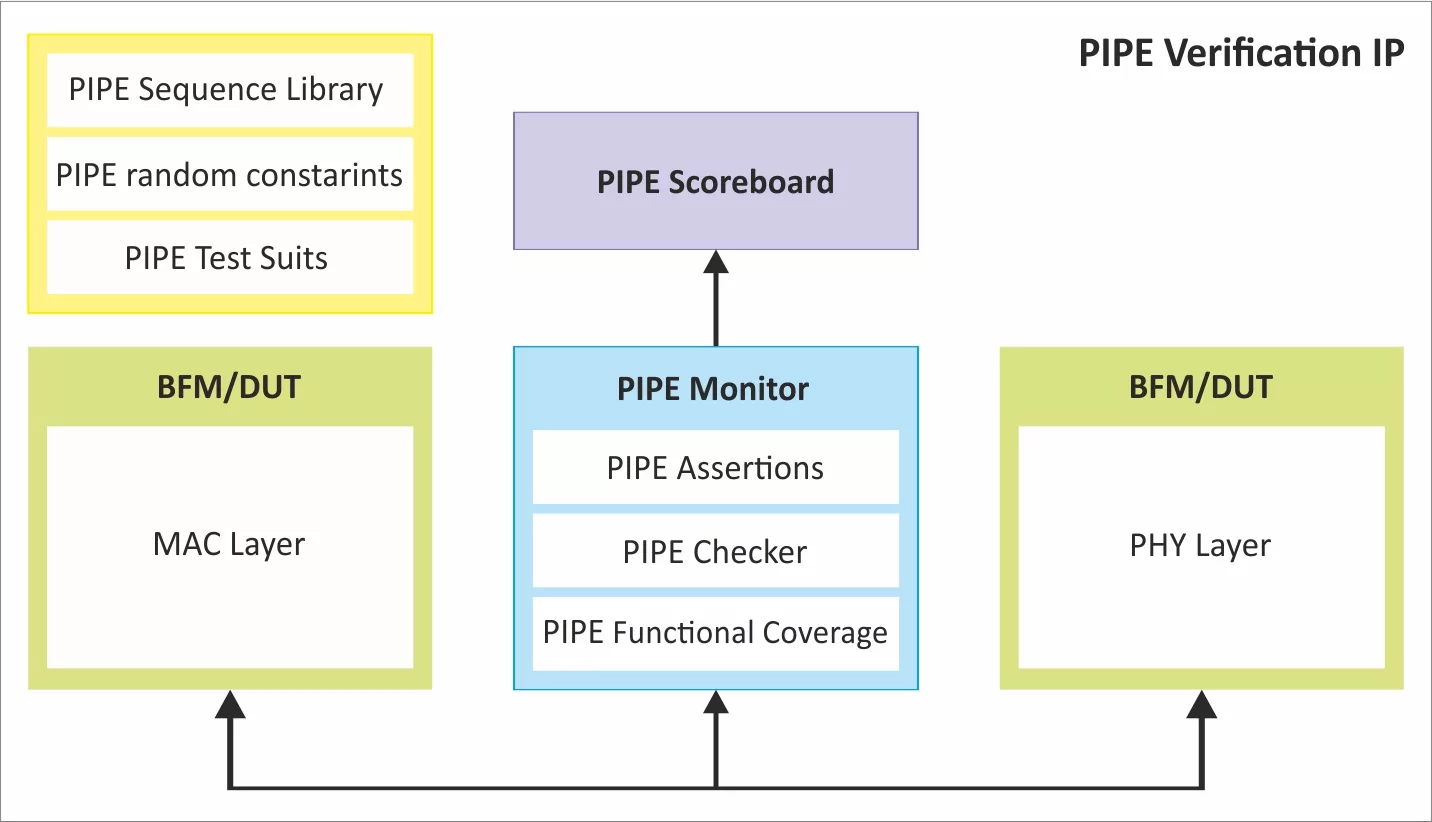

PIPE 6/5 block diagram
Benefits
- Available in native System Verilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity examples for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solutions and easy integration in IP and SoC environment
What’s Included?
- PIPE Tx/Rx/BFM/Agent
- PIPE Monitor
- PIPE Scoreboard
- Testbench Configurations
- Test Suite (Available in Source code)
- Basic and Directed Protocol Tests
- Random Tests and Error Scenario Tests
- Assertions & Cover Point Tests
- Integration Guide, User Manual and Release Notes
Specifications
Identity
Part Number
PIPE 6/5
Vendor
Truechip Solutions
Type
Verification IP
