Vendor: Frontgrade Gaisler Category: CPU

Configurable RISC-V processor IP core

The NOEL3 is a configurable RISC-V processor IP core, described in VHDL.

RISC-V View all specifications

Overview

The NOEL3 is a configurable RISC-V processor IP core, described in VHDL. The architecture is designed to utilize a small area footprint and to maintain execution predictability.

Key features

  • 32-bit RISC-V processor – with configurable extensions
    • RV32I: integer essential instructions
    • M: integer multiplication and division
    • A: atomic instructions for concurrency
    • F: single-precision floating-point arithmetic
    • C: compressed instructions to reduce code size
    • B: bit manipulation instructions
    • Zfh: half-precision floating-point operations.
    • Zfa: additional floating-point instructions
    • Debug module
  • Deterministic execution time guaranteed by barrel processor architecture
  • Configurable number of hardware execution threads (2 to 7)
  • One thread is always reserved for SoC operations
  • Utilizes tightly coupled memories instead of caches for predictable memory access
  • RISC-V PLIC interrupt controller
  • Support of AMBA AHB and APB-like deterministic bus for external memory and peripherals
  • Companion IP cores for bus fabrics, peripherals, networking and security (GRLIB IP Library)

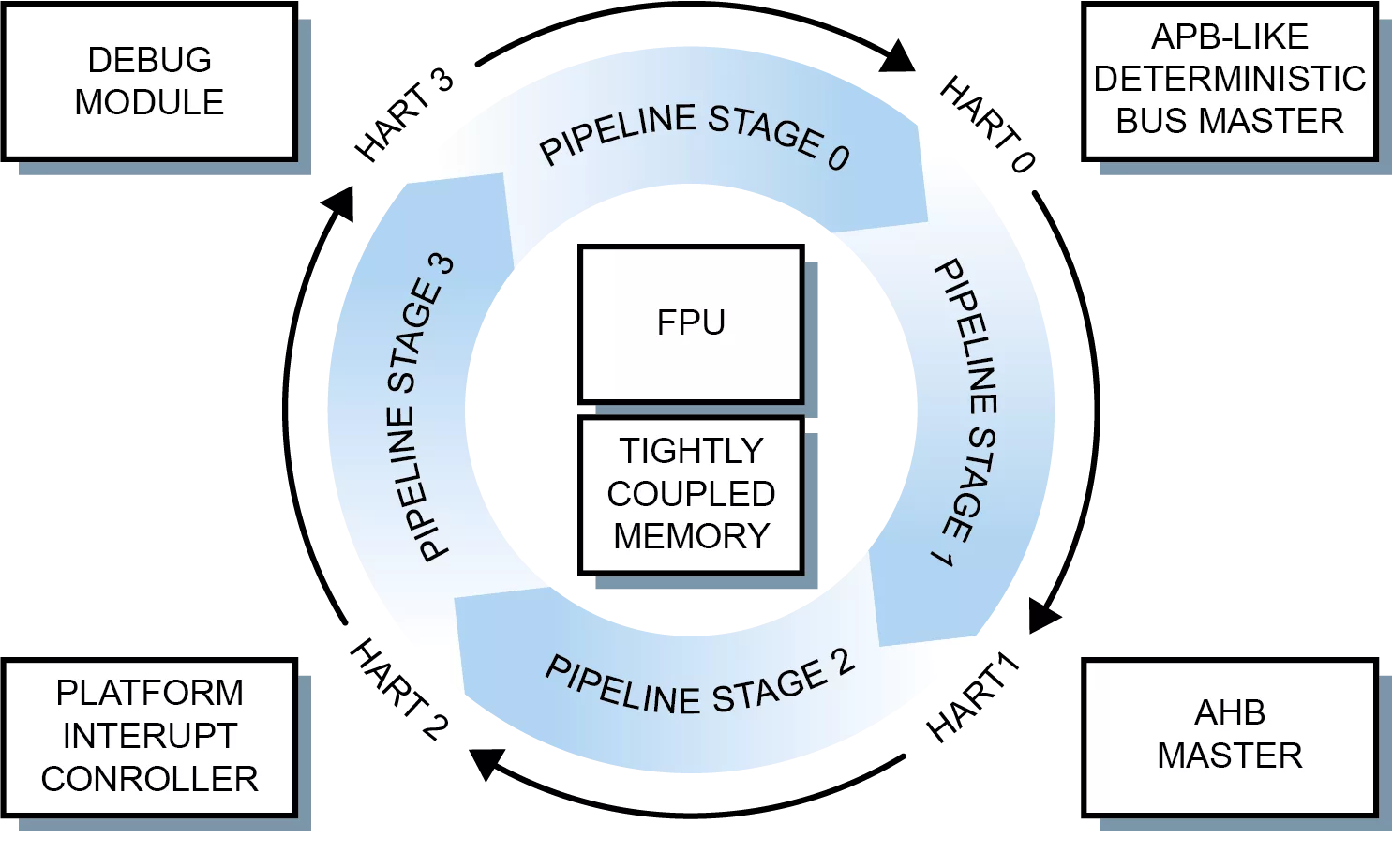

Block Diagram

NOEL3 block diagram

Specifications

Identity

Part Number
NOEL3
Vendor
Frontgrade Gaisler
Type
Silicon IP

Compute

CPU Architecture
RISC-V

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Frontgrade Gaisler
HQ: Sweden
