CCSDS Rate 1/2 TC and TM LDPC Encoder

The LCE03C is a low complexity encoder for the CCSDS rate 1/2 telecommand (TC) and telemetry (TM) low density parity check (LDPC)…

Contact Provider Request Datasheet

Overview

The LCE03C is a low complexity encoder for the CCSDS rate 1/2 telecommand (TC) and telemetry (TM) low density parity check (LDPC) standard. The TC encoder implements data lengths of 64 or 256. The optional TM encoder implements a data length of 1024.

Key features

  • CCSDS TC and TM compatible
  • Rate 1/2
  • Data lengths of TC 64 and 256 or optional TM 1024 bits
  • Up to 715 MHz internal clock
  • Up to 5.5 Mbit/s encoding speed
  • 76 LUTs TC or 101 LUTs and 1 18KB BlockRAM TC/TM for Xilinx Virtex-5, Spartan-6, Virtex-6, 7-Series, UltraScale and UltraScale+ FPGAs
  • Available as VHDL core for AMD-Xilinx FPGAs under SignOnce IP License. Custom ASIC, Intel/Altera, Lattice and Microsemi/Actel FPGA cores available on request.

Block Diagram

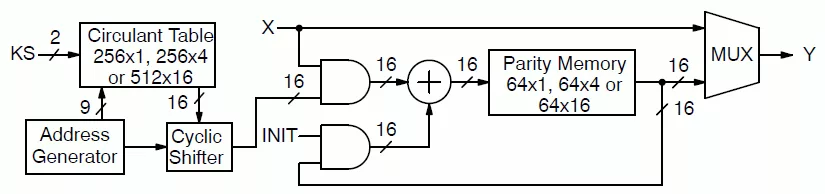

LCE03C block diagram
