Vendor: Integre Technologies LLC Category: Video Processing

Camera Link Frame Grabber Channel Link Data Processor

The Integre IP-CamLink is an end to end frame grabber solution for Camera Link processing of image data and image enables that ar…

Contact Provider Request Datasheet

Overview

The Integre IP-CamLink is an end to end frame grabber solution for Camera Link processing of image data and image enables that are deserialized from Channel Link interfaces.

Key features

  • Inclusive of all Camera Link defined camera configurations including the proposed 80 bit extensions which utilize one to three Channel Link or equivalent devices.
  • Supports single camera or two independent base cameras for multi-view or 3D stereo applications.
  • Fully synchronous pipeline architecture supports high speed implementation in low cost logic devices.
  • Dynamic reconfiguration of the processing chain via register interface in addition to a user selected default setup.
  • Data resynchronization of the three Channel Link interface inputs for coherent pixel data presentation at the output.
  • Output image data presented on an eight byte memory mapped pixel interface as depicted in the Camera Link specification.
  • Camera image enables are carried through to the output with an added data valid qualifier for the streaming synchronous output.
  • Input link status and link data resynchronization status outputs available for increased visibility and enhanced debug capabilities.

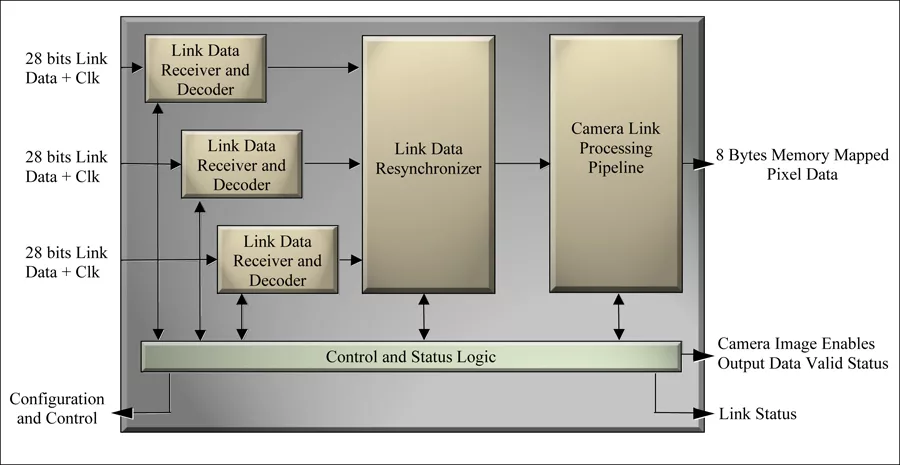

Block Diagram

IP-CamLink block diagram

What’s Included?

  • The core is delivered as encrypted RTL and includes:
    • Testbench and Verification Environment
    • User Guide Documentation

Specifications

Identity

Part Number
IP-CamLink
Vendor
Integre Technologies LLC
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Integre Technologies LLC
