ARC-V RMX-500 Processor IP

The ARC-V™ RMX-500 Processors are based on the RISC-V instruction set architecture (ISA) and optimized for use in embedded applic…

RISC-V View all specifications

Overview

The ARC-V™ RMX-500 Processors are based on the RISC-V instruction set architecture (ISA) and optimized for use in embedded applications where power & performance efficiency are key concerns. The DSP enhanced implementation (RMX-500D) adds DSP capability for applications such as IoT wearable devices where the combination of low power and signal processing are required to enable device performance and extend battery life.

The processors feature an efficient 5-stage Harvard architecture pipeline that provides excellent throughput for embedded applications.

The ARC-V RMX-500 features up to 64KB of Level 1 (L1) instruction & data cache and up to 2MB each of closely coupled instruction and data memories (CCM), maintain high code density and offer excellent performance within a very small footprint.

Key features

  • Family of 32-bit processors for low-power embedded applications
  • Based on the RISC-V ISA, leveraging standard 32-bit protocols (and extensions)
  • RISC and RISC + DSP 32-bit processors for low-power embedded applications (RMX-500D)
  • DSP instruction extensions (RMX-500D)
  • Easy DSP programming support with MetaWare C/C++ Compiler (RMX-500D)
  • Feature-rich DSP software library for easy algorithm programming
  • High degree of configurability
  • Support for custom instructions
  • Support for up to 64KB of L1 instruction and data caches
  • Support for up to 2 MB of closely coupled instruction and data memory and direct mapping of peripherals
  • Native Arm AMBA® AHB™, AHBLite™ and AXI interfaces
  • Optional 32x32 or 16x16 single and multicycle multiplier
  • ECC/Parity support
  • Advanced Platform Level Interrupt Controller (APLIC) supporting up to 1023 wired interrupts
  • ARC Trace I/F provides real-time trace debugging features

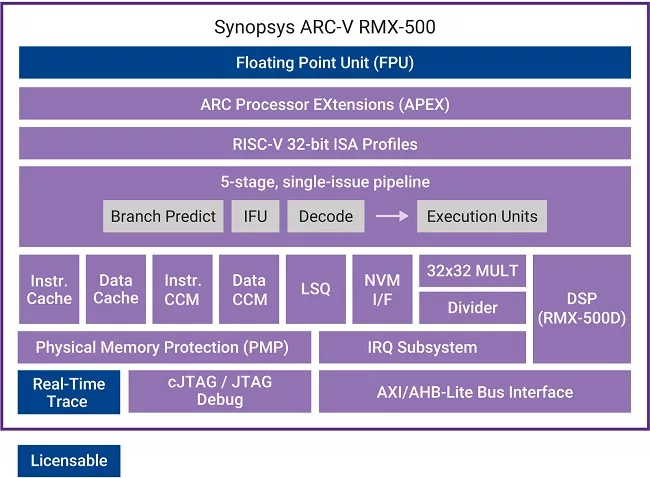

Block Diagram

arc-v-rmx-500 block diagram

Benefits

  • RMX-500
    • Power efficient 32-bit RISC-V cores
    • Targeting embedded applications where power/performance efficiency is critical
  • RMX-500D
    • Power efficient 32-bit RISC-V cores with DSP
    • Over 150 DSP extension instructions
    • Easy DSP programming support

Specifications

Identity

Part Number
arc-v-rmx-500
Vendor
Synopsys, Inc.
Type
Silicon IP

Compute

CPU Architecture
RISC-V

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Synopsys, Inc.
HQ: USA
