64-Bit 8-stage superscalar RISC-V processor
The 64-bit NX45 is an 8-stage superscalar processor that supports RISC-V specification, including “G” (“IMAFD”) standard instruct…
Overview
The 64-bit NX45 is an 8-stage superscalar processor that supports RISC-V specification, including “G” (“IMAFD”) standard instructions, “C” 16-bit compression instructions, and “B” bit manipulation, and Andes performance enhancements, plus Andes Custom Extension™ (ACE) for user-defined instructions. It issues two instructions per cycle that significantly increases the performance efficiency that is important for many applications. Its ”B” extensions provide some combination of code size reduction, performance improvement, and energy reduction, and “FD” extensions support IEEE754-compliance single and double precision floating point instructions as well. It incorporates MemBoost to greatly enhance memory bandwidth and reduce memory latencies for applications with intensive memory accesses. In addition, N45 incorporates MemBoost to greatly enhance memory bandwidth and reduce memory latencies for applications with intensive memory accesses. Other features include ECC for memory soft error protection, Platform-Level Interrupt Controller (PLIC) with enhancements for vectored dispatch and priority-based preemption, CoDense™ and StackSafe™ for software quality improvement, PowerBrake and WFI for power management.
AndeStar™ V5 Architecture
| Key Features | Benefits |
|---|---|
| RISC-V RV64GCB ISA |
|
| Andes Custom Extension™ (ACE) option to create custom instructions for software acceleration |
|
| Andes Extended Instructions | Andes exclusive performance and functionality enhancements |
| 16/32-bit mixable instruction format | For compact code density |
| 32 general-purpose registers | For better code size and performance |
CPU Core
| Key Features | Benefits |
|---|---|
| 5.63 Coremark/MHz, 3.27 DMIPS/MHz* | Excellent performance-per-MHz |
| 8-stage dual-issue in-order pipeline | Superior performance-efficiency, while allowing for high speeds |
|
Extensive branch predication features
|
|
| Physical Memory Protection (PMP), configurable up to 32 regions | Basic read/write/execute memory protection with minimum cost |
| Programmable Physical Memory Attribute (PMA), configurable up to 16 regions |
Configurable memory attributes:
|
| Performance monitors | Program code performance tuning |
| StackSafe™ hardware stack protection |
|
|
Multiplier options
|
Option to choose between speed and area according to application's requirements |
| PowerBrake technology | Performance throttling to digitally reduce power consumption |
| QuickNap™ technology | Fast power-down/wake-up support for caches |
* BSP v5.1.0, DMIPS/MHZ follows Dhrystone’s no-inline ground rules, best performances
Memory Subsystems
| Key Features | Benefits |
|---|---|
|
I-Cache & D-Cache
|
|
|
ILM & DLM
|
|
| MemBoost | Optimize cache reads and writes to achieve higher bandwidth and lower latency |
| Soft-error protection: parity for I-Cache, and ECC for D-Cache, ILM and DLM | Code and data integrity protection |
| Bus master port: AXI with 64/128/256-bit data, I/D joint or separate bus | User-selectable bus interface for optimal efficiency |
| Bus save port: AXI with 64/128/256-bit data, for ILM/DLM accesses | Efficient data transfer between CPU and SoC masters |
| Core/bus clock ratio of N:1 | Simplified SoC integration |
| 64-bit AXI Peripheral Port Interface | For latecny-sensitve peripheral |
Platform-Level Interrupt Controller (PLIC)
| Key Features | Benefits |
|---|---|
|
Implements RISC-V PLIC specification
|
Allow individual interrupts to be serviced and prioritized without sharing |
|
Enhanced interrupt features
|
|
Debug Support
| Key Features | Benefits |
|---|---|
| Implements RISC-V debug specifications ver 0.13 | Supported by industry debug tool suppliers |
| JTAG Debug Port | Industry-standard support |
| Embedded Debug Module with up to 8 triggers | Flexible configurations to tradeoff between gate count and debugging capabilities |
| Exception redirection support | Entering debugger upon selected exceptions without using breakpoints |
Trace Support
| Key Features | Benefits |
|---|---|
| Implements RISC-V Trace 1.0 Instruction Trace interface | Supported by Andes tools |
Performance
| Core, Process | NX45, 7nm |
|---|---|
| Frequency (MHz) | 1800 |
| Dynamic power (uW/MHz) | 14.2 |
| Area (mm2) | 0.038 |
TSMC 7nm FIN FET ULVT/LVT/SVT, cell height 240nm, High Speed L1 Cache Memory Compiler. Frequency condition: worst: SSGNP/0.675V/-40oc, typical: TT/0.75v/+85oc. Power and area : typical corner. Configurations: 256-entry BTB, PMP&PMA 16-entry, 32KB I/D$ (no Local Memory), MemBoost, w/o FPU, with I/O constraint; die area and power are core only, 65% utilization.
Key features
- 64-bit in-order dual-issue 8-stage pipeline CPU architecture
- AndeStar™ V5 Instruction Set Architecture (ISA)
- Compliant to RISC-V RV64 GCBP little endian:
- RV-GC: Integer, single/double precision floating point and 16-bit extensions
- RV-B Bit manipulation extensions
- RV-P (draft) DSP/SIMD extensions
- Andes V5 performance/code size extensions
- 16/32-bit mixable instruction format for compacting code density
- Advanced low power branch predication to speed up control code
- Return Address Stack (RAS) to accelerate procedure returns
- Physical Memory Protection(PMP), and programmable Physical Memory Attribute (PMA)
- MemBoost for heavy memory transactions
- Flexibly configurable Platform-Level Interrupt Controller (PLIC) for supporting wide range of system event scenarios
- Enhancement of vectored interrupt handling for real-time performance
- Advanced CoDense™ technology to reduce program code size

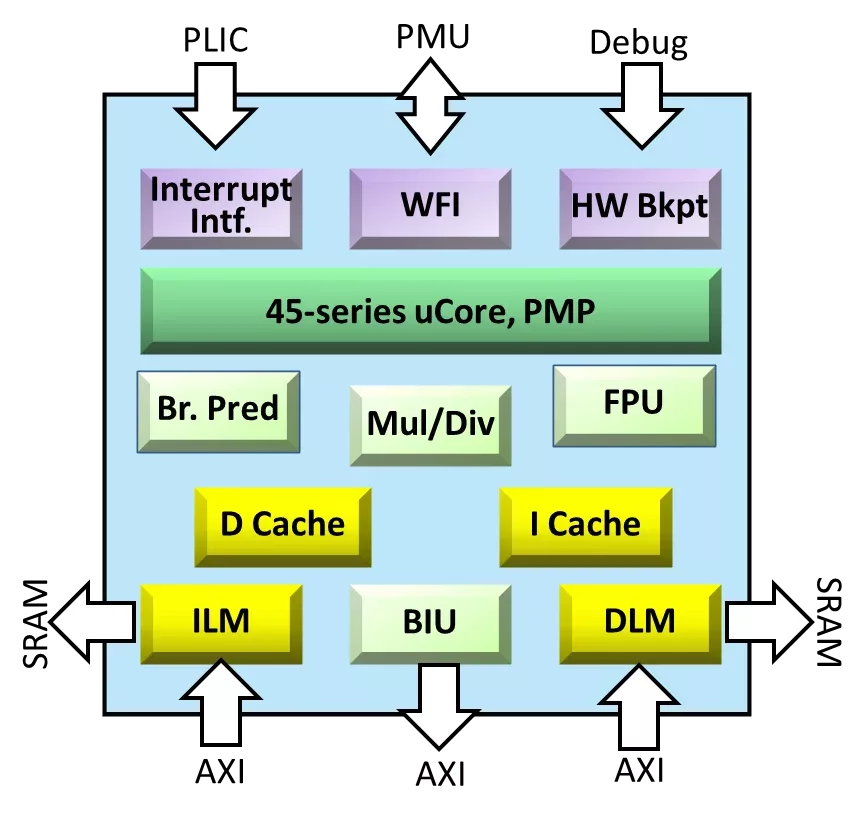

Block Diagram
NX45 block diagram
Benefits
- Performance
- 64-bit in-order dual-issue 8-stage pipeline CPU architecture
- AndeStar™ V5 Instruction Set Architecture (ISA), compliant to RISC-V technology
- IEEE754-compliance single and double precision floating point extensions
- Andes extensions, architected for performance and functionality enhancements
- 16/32-bit mixable instruction format for compacting code density
- Advanced low power branch predication to speed up control code
- Return Address Stack (RAS) to accelerate procedure returns
- Physical Memory Protection (PMP), and programmable Physical Memory Attribute (PMA)
- MemBoost for heavy memory transactions
- Flexibly configurable Platform-Level Interrupt Controller (PLIC) for supporting wide range of system event scenarios
- Enhancement of vectored interrupt handling for real-time performance
- Advanced CoDense™ technology to further reduce code size on top of “C” extension
- Flexibility
- Easy arrangement of preemptive interrupts
- StackSafe™ hardware to help measuring stack size, and detecting runtime overflow/underflow
- ECC or Parity check on level-one memories for fault protection
- Several configurations to tradeoff between core size and performance requirements
- Power Management
- PowerBrake, QuickNap™ and WFI (Wait For Interrupt) for power management at different occasions
Applications
- Networking and Communications
- Video and Image Processing
- Storage
- Advance Industrial Controller
What’s Included?
- AndesCore™ NX45 Single-core Processor with AE350 Platform– pre-integrated RTL with CPU subsystem (including PLIC, Debug Module) and AXI Platform
Specifications
Identity
Part Number
NX45
Vendor
Andes Technology Corp.
Type
Silicon IP
Compute
CPU Architecture
RISC-V
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
R.O.C
