Vendor: Renesas Category: PLL

4GHz Analog PLL for Frequency Multiplying IP

Analog-PLL For Frequency Multiplying on TSMC 28nm HPC+

TSMC 28nm HPC+ Available on request View all specifications

Overview

The AT28_PLL0000MPFR4G18V1B is a 4GHz analog phase-locked loop (PLL) IP for frequency multiplying using TSMC's 28nm HPC+ (High-Performance Compact Plus) process technology.

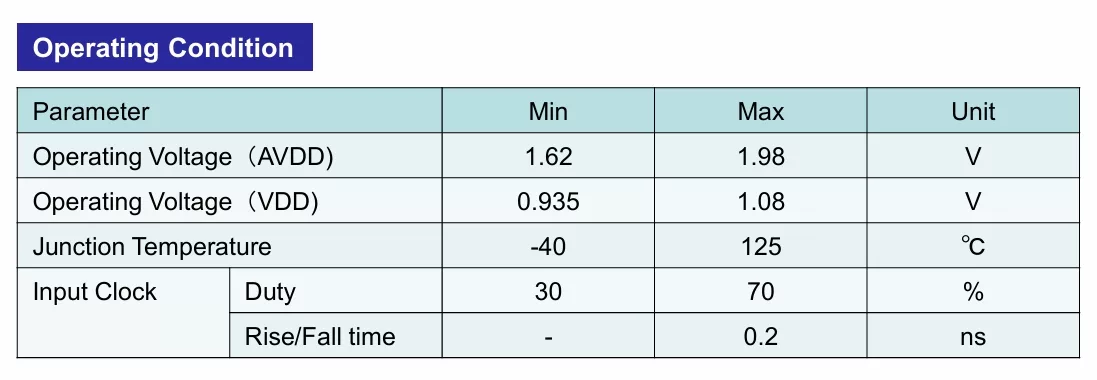

Operating Condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.62 1.98 V
Operating Voltage (VDD) 0.935 1.08 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 2000MHz to 4000MHz
  • Output frequency range: 62.5MHz to 4000MHz
  • Input frequency range: 20MHz to 200MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 1.5625 to 200
  • Divider
    • 7-bit feedback divider, 3-bit input divider, and 3-bit output divider
  • 14-bit fractional accuracy
  • Power-down mode
  • SSC input is available (recommend triangle profile)
  • VCO operating range: 2000MHz to 4096MHz
  • Process: TSMC 28nm HPC+

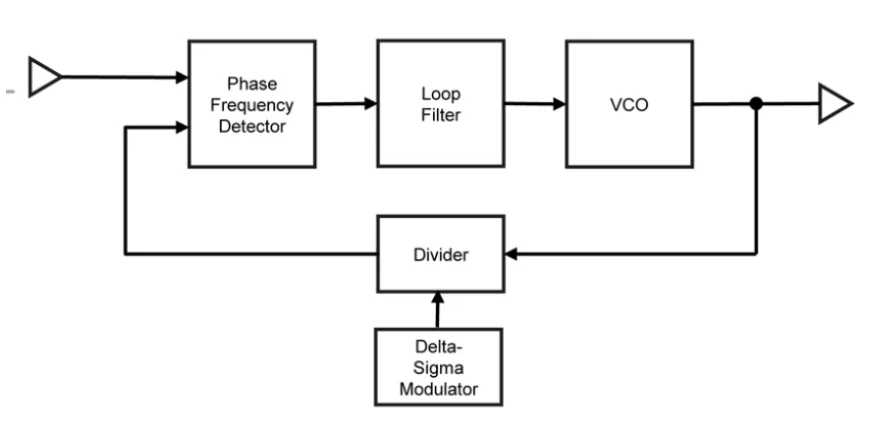

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ Available on request

Specifications

Identity

Part Number
AT28_PLL0000MPFR4G18V1B
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
