40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL

The TRV302TSM40LP IP is a 1.1V low-power, low-silicon-area and high-performance 2.0GHz-to-4.7GHz Fractional-N RF PLL implemented …

TSMC 40nm G View all specifications

Overview

The TRV302TSM40LP IP is a 1.1V low-power, low-silicon-area and high-performance 2.0GHz-to-4.7GHz Fractional-N RF PLL implemented in TSMC Low-Power 40nm CMOS process technology. Its low loop-filter bandwidth and low phase-noise characteristics makes it especially suitable for use in
on-chip Quadrature Local Oscillator References for Tx and Rx up/down-converters within wireless communication and Internet-of-Things integrated circuit chipsets (LTE, WiFi, IoT, etc).

Key features

  • 2.0GHz-to-4.7GHz PLL Output Coverage
  • Scalable Power Consumption
  • Independent 2.0GHz to 3.0GHz Rail-to-Rail Quadrature Output (OP1)
  • Independent 3.0GHz to 4.7GHz Rail-to-Rail Quadrature Output (OP2)
  • Internal Calibration Engine and Convergence Algorithm
  • Fully-integrated 300kHz loop filter
  • 20MHz to 54MHz Crystal Oscillator Reference Support

Block Diagram

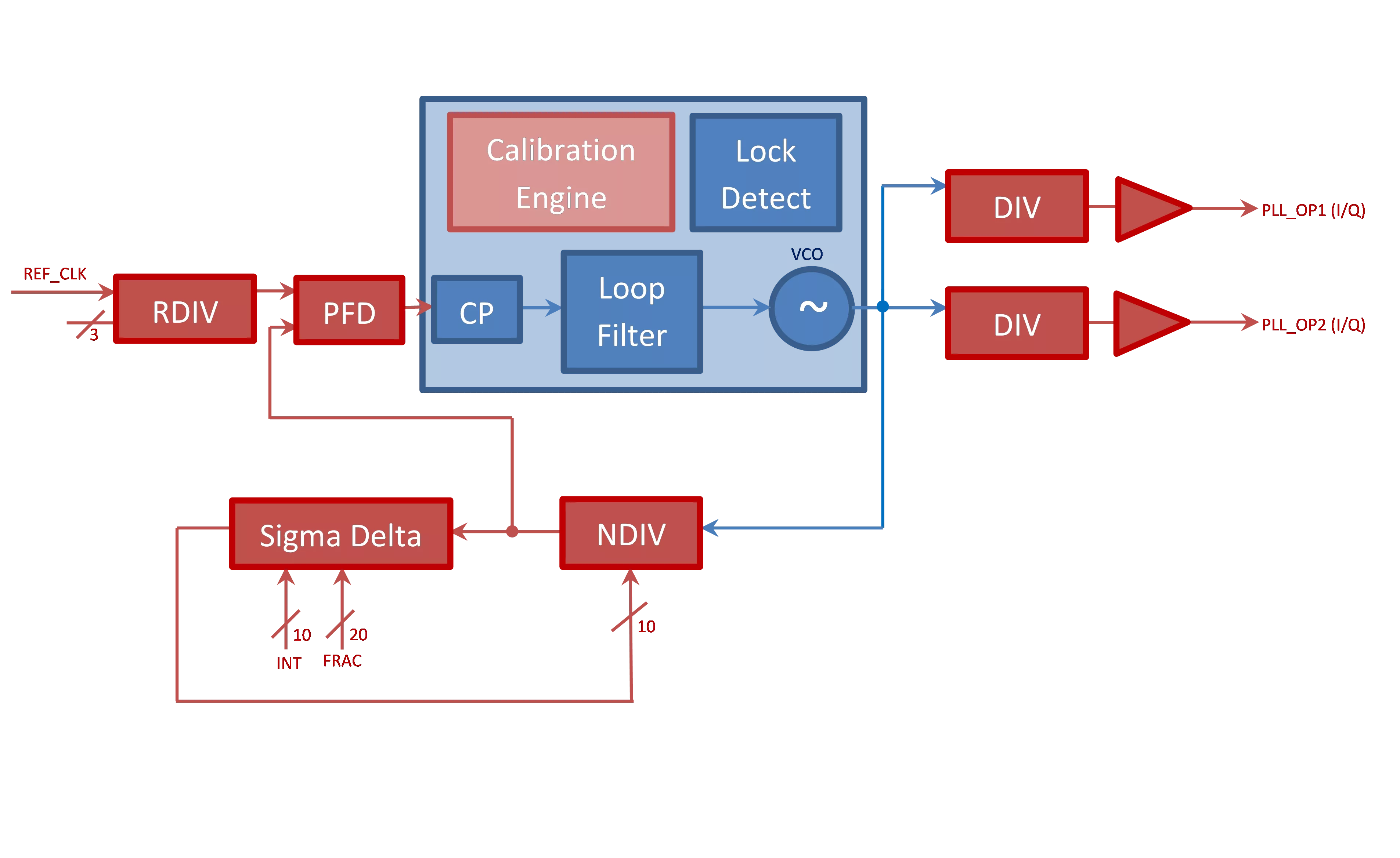

TRV302TSM40LP block diagram

Benefits

  • Low-power and low-area fully-featured 2.0GHz-to-4.7GHz Fractional-N RF Quadrature PLL with programmable outputs and integrated calibration engine and tuning voltage convergence logic.

Applications

  • The PLL is suitable for use in on-chip Quadrature Local Oscillator References for Tx and Rx up/down-converters within wireless communication and Internet-of-Things integrated circuit chipsets (LTE, WiFi, IoT, etc).

What’s Included?

  • Behavioural Models
  • Timing Models
  • GDSII Layout Database
  • Netlist for LVS verification
  • Usage and Integration Guidelines
  • Databook
