Overview

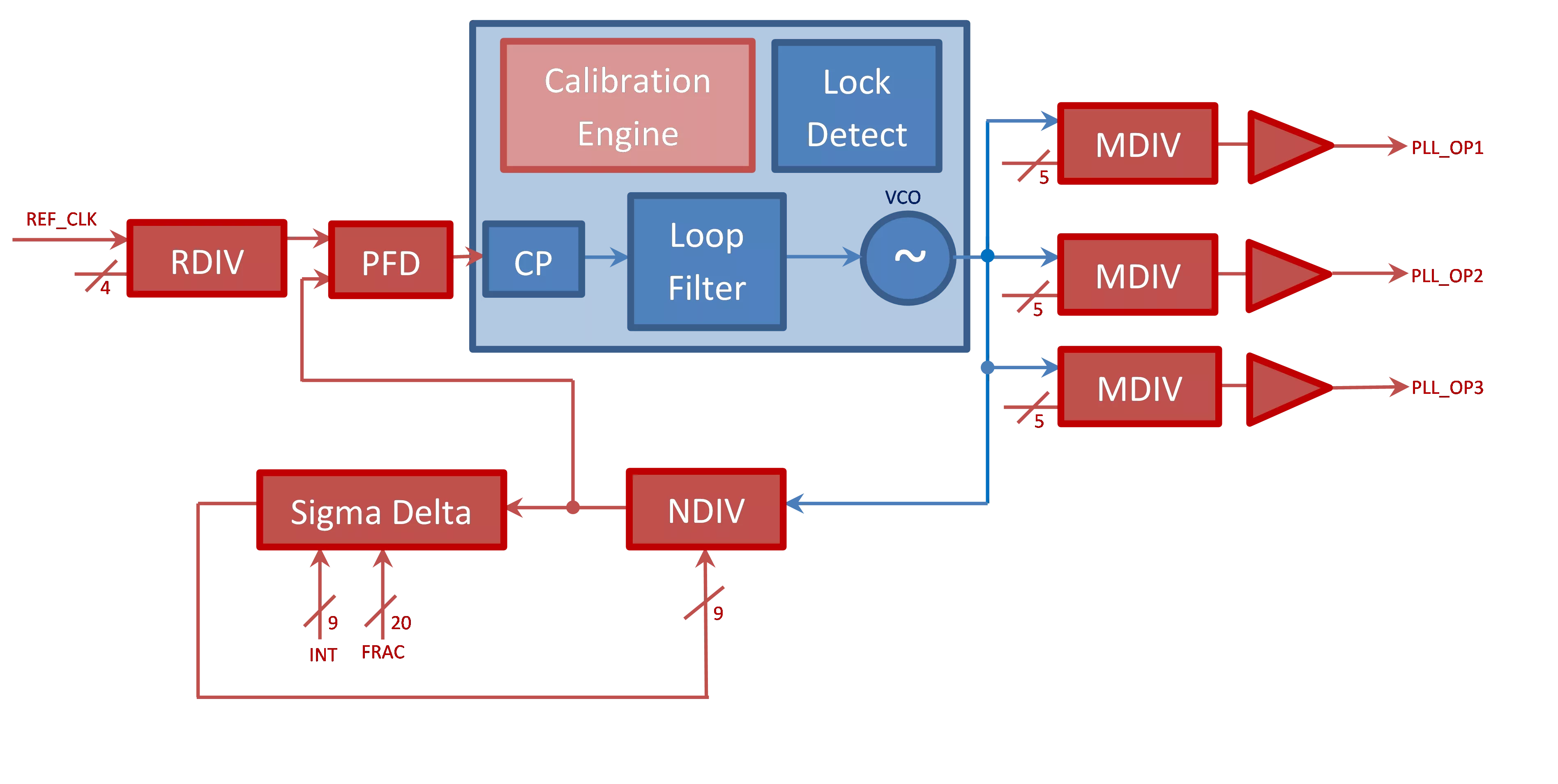

The TRV301TSM40LP IP is a 1.1V low-power low-silicon-area 16MHz-to-2GHz Fractional-N Clock PLL implemented in TSMC Low-Power 40nm CMOS process technology. Its low loop filter bandwidth and low-frequency reference clock makes it especially suitable for use in clock synthesis for DAC, ADC and digital subsystems within wireless communication and broadcast integrated circuit chipsets (LTE, WiFi, WiMAX, DAB, DAB+, FM, HDFM, DRM, etc).
Learn more about PLL IP core
How do you ensure that every part of a system receives the clock it needs—without wasting power or sacrificing performance? The answer lies in creating a well-structured frequency plan built around a PLL.
Jian Yang, Sween Kang (Synopsys)
This white paper is aimed at system architects and physical implementation leaders working on the design of SoCs. It can be confusing to understand the impact of different jitter sources and how to calculate a jitter budget when specifying a digital system. This white paper explains how jitter changes the period of a clock and how to ensure that jitter has correctly been accounted for in the calculations for timing closure.
This article explains a some of the key terminology and parameters commonly used to describe jitter. It will also help clarify the most important parameters for a some PLL applications, allowing the designer to better understand what is required from a PLL.
In high end RF systems, such as 5G radios, the requirements are so stringent that the source of this strongest unwanted tone can be the PLL. This article outlines how spurs in the input clock to the ADC or DAC may limit the SFDR. This in turn will set the requirements for the spurs for the input clock (from a PLL), in order to achieve a specific SFDR.
This article compares analog, first-generation digital, and second-generation digital PLLs. It evaluates which type of PLL may be best in which situation. It further discloses a roadmap into other application areas, including general purpose / logic clocking, and regular low-jitter PLLs.
