4.3GHz Analog PLL for Spread Spectrum Clock Generator IP

4.3GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 7nm

TSMC 7nm N7+ Available on request View all specifications

Overview

The AT7N_PLL0000SG4P3G18V1A is a 4.3GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 7nm process technology.

Operating Condition

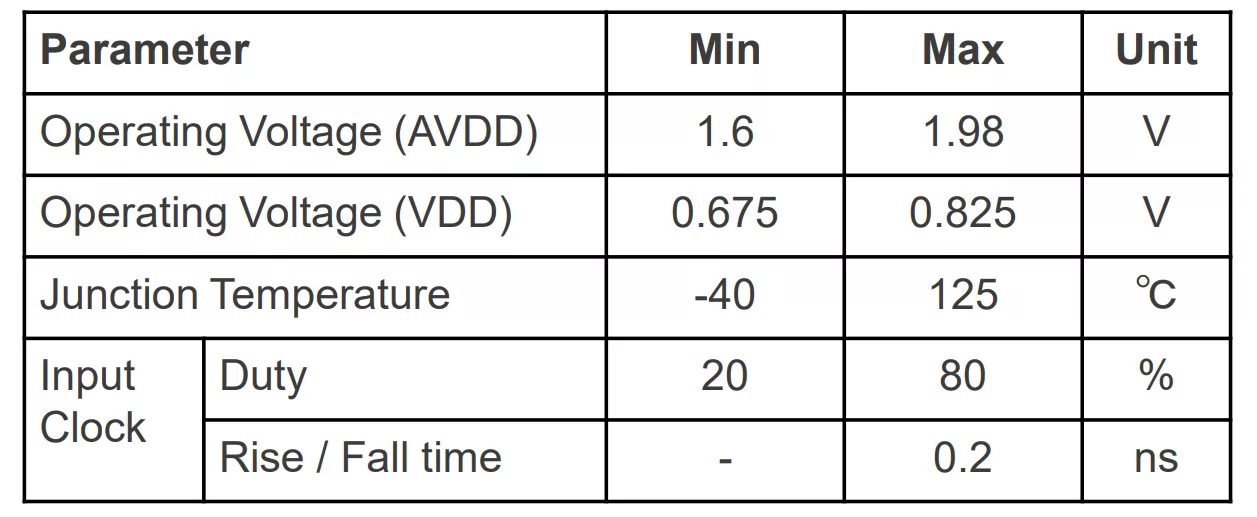

Parameter Min Max Unit
Operating Voltage (AVDD) 1.6 1.98 V
Operating Voltage (VDD) 0.675 0.825 V
Junction Temperature -40 125 °C
Input Clock — Duty 20 80 %
Input Clock — Rise / Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 2,000MHz to 4,300MHz
  • Output frequency range: 500MHz to 4,300MHz
  • Input frequency range: 10MHz to 200MHz
  • Multiplying
    • Output frequency/Input frequency: 2.5 to 430
  • Fractional multiplying available
  • SSC function available
    • Modulation frequency
      • 20kHz to 60kHz
    • Modulation depth
      • -1% to -6% down spread
      • ±0.5% to ±3% center spread
  • Divider
    • 33-bit feedback divider
    • 3-bit input divider
  • Power-down mode
  • Process: TSMC 7nm

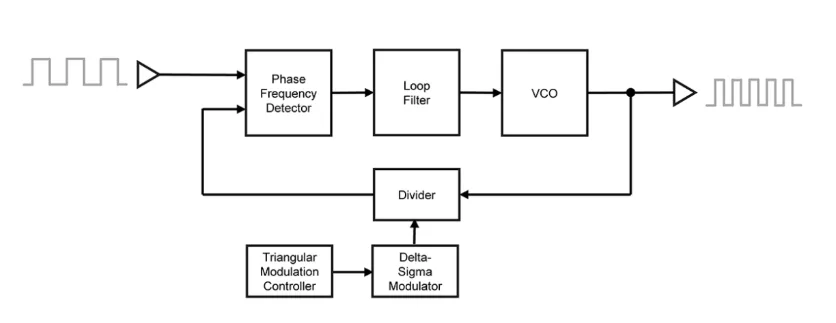

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 7nm N7+ Available on request

Specifications

Identity

Part Number
AT7N_PLL0000SG4P3G18V1A
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download
