4.1GHz Analog PLL for Frequency Multiplying IP

4.1GHz Analog PLL for Frequency Multiplying IP on TSMC 16nm FF+

TSMC 16nm FF+GL Available on request View all specifications

Overview

Analog-PLL For Frequency Multiplying on TSMC 16nm FF+

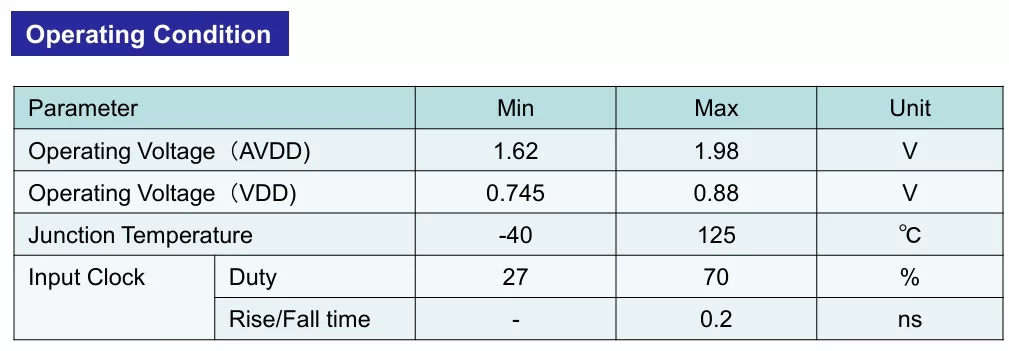

Operating Condition

Parameter Min Max Unit
Operating Voltage  (AVDD) 1.62 1.98 V
Operating Voltage  (VDD) 0.745 0.88 V
Junction Temperature -40 125 °C
Input Clock Duty 27 70 %
Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 2000MHz to 4096MHz
  • Output frequency range: 1000MHz to 2048MHz
  • Input frequency range: 12.5MHz to 200MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency): 40 to 120
  • Divider
    • 7-bit feedback divider and 3-bit input divider
  • Power-down mode
  • Multiple outputs with post-divider
  • Power-on sequence is constraint-free
  • Standby (STBY) sequence is constraint-free
  • Process: TSMC 16nm FF+
