What is 3GPP UMTS LTE 3GPP2 cdma2000 1xEV-DV 1xEV-DO 8 state turbo encoder?
3GPP UMTS LTE 3GPP2 cdma2000 1xEV-DV 1xEV-DO 8 state turbo encoder is a Channel Coding IP core from Small World Communications listed on Semi IP Hub.
Vendor:
Small World Communications
Category:
Channel Coding
3GPP UMTS LTE 3GPP2 cdma2000 1xEV-DV 1xEV-DO 8 state turbo encoder
This is a high speed 8 state 3GPP™ (UMTS and LTE) and 3GPP2 cdma2000 (1xEV-DV Release D and 1xEV-DO Release B) compatible paralle…
Overview
This is a high speed 8 state 3GPP™ (UMTS and LTE) and 3GPP2 cdma2000 (1xEV-DV Release D and 1xEV-DO Release B) compatible parallel concatenated turbo encoder.
Key features
- 8 state 3GPP™ (UMTS and LTE) and 3GPP2 cdma2000 (1xEV-DV Release D and 1xEV-DO Release B) compatible turbo encoder
- Rate 1/2, 1/3, 1/4 or 1/5
- 40 to 5114 bit (3GPP™ UMTS), 40 to 6144 (3GPP™ LTE) or 17 to 32768 (3GPP2)
- Implement one, two or four different standards from the one core
- Up to 311 MHz internal clock
- Up to 155 Mbit/s encoding speed
- Serial encoded data out
- Available as VHDL core for Xilinx FPGAs under SignOnce IP License. ASIC, Altera, Lattice and Microsemi cores available on request.

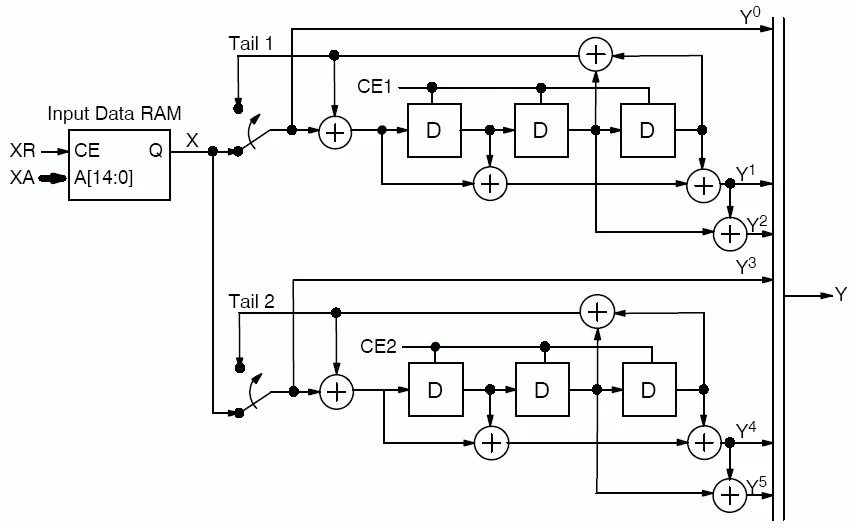

Block Diagram
PCE03V block diagram
What’s Included?
- All Licenses
- Xilinx VHDL core
- Test vector generation software
- VHDL ASIC License
- ASIC VHDL core
- C++ bit/cycle exact simulation model
Specifications
Identity
Part Number
PCE03V
Vendor
Small World Communications
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
