32kHz Crystal Oscillator IP

Crystal (Xtal) oscillator IP for 32kHz clock generation using TSMC's T22ULP

TSMC 22nm ULL Available on request View all specifications

Overview

The AT22PXTL0000F32KV18A0 is a crystal (Xtal) oscillator IP for 32kHz clock generation using TSMC's T22ULP (22nm Ultra-Low Power) process technology.

Key features

  • 32.768kHz, clock generation with crystal resonator
  • External clock input mode (XOUT/XBYP) is supported
  • Clock noise filter is not included
  • Power-down mode is supported
  • Includes the feedback resistor (Rfb)
    • Rfb can be cut off
  • Does not include the dumping resistor (Rd) and the internal cap
  • Supply voltage
    • Analog: 1.60V to 1.98V
  • Load capacitance (CL) of the external Xtal: 4pF to 12.5pF
  • Process: TSMC T22ULP

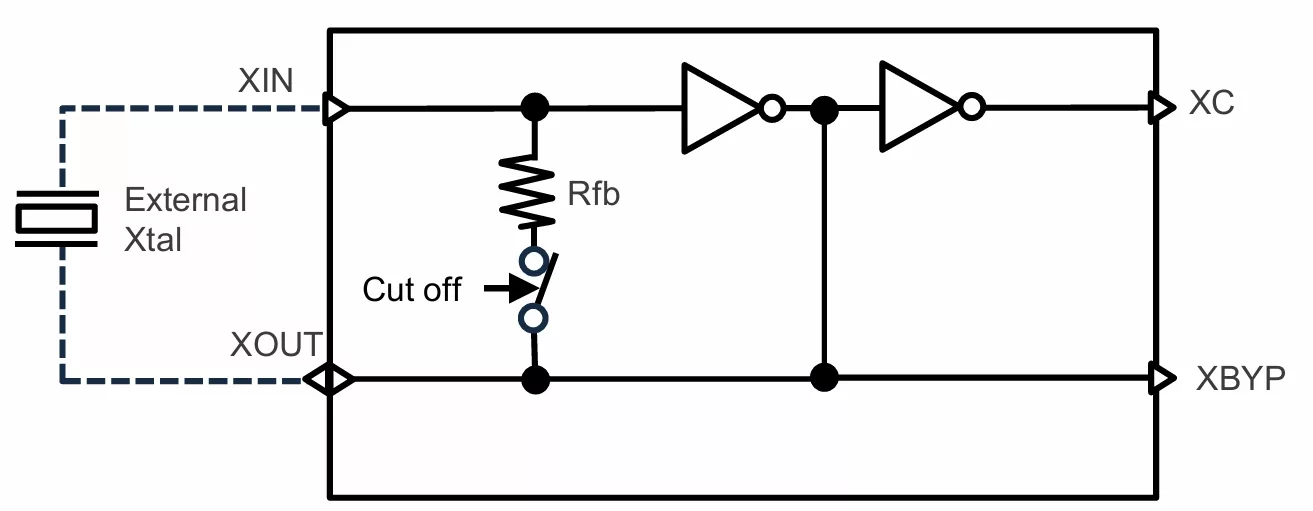

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULL Available on request

Specifications

Identity

Part Number
AT22PXTL0000F32KV18A0
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan

Learn more about Oscillator IP core
