XTAL Oscillators
Compatible with a wide range of industry standard quartz crystals operating in the fundamental mode from 8 to 100 MHz.
Overview
These crystal referenced (XTAL) oscillators are compatible with a wide range of industry standard quartz crystals operating in the fundamental mode from 8 to 100 MHz.
Silicon proven or mass production in 4/5n, 6/7n, 40n at TSMC.
Key features
- Designed for crystals and MEMS resonators with allowed drive levels of 100uW or higher
- Supports 8 to 100 MHz fundamental mode quartz crystals with ESR up to 150 Ohms pro grammable based on crystal parameters.
- Programmable transconductance to allow us ers to find the optimal balance between jitter and power consumption.
- Bypass mode for use with an external oscilla tor.
- Compatible with standard foundry ESD, pow er and IO cells
- Low area (e.g. 0.0015mm² @ 2n)

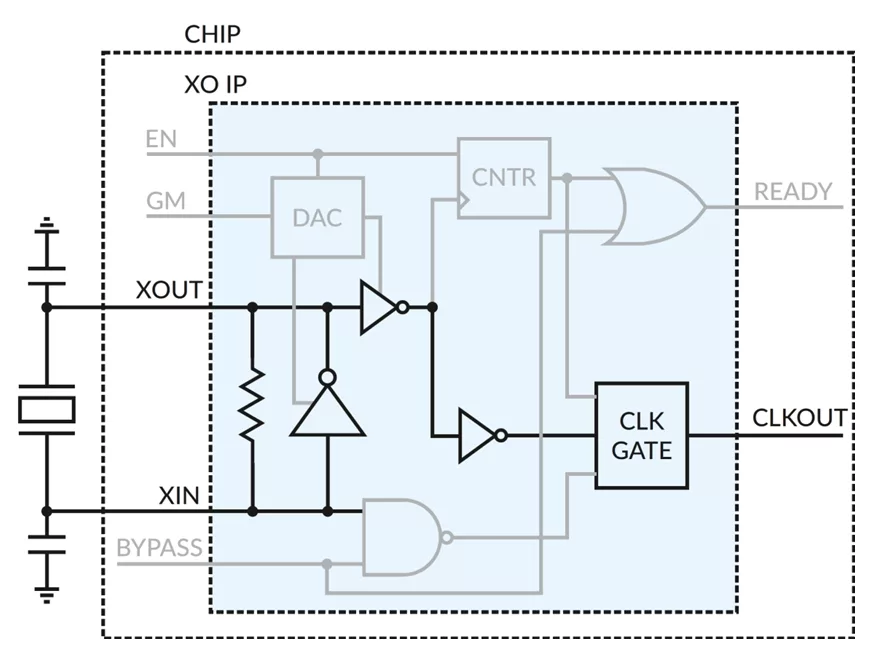

Block Diagram
Click to open fullscreen
1 /
2
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 4nm | N4P | Available on request |
| TSMC | 6nm | N6 | Available on request |
| TSMC | 7nm | N7 | Available on request |
| TSMC | 12nm | FFC+ | Available on request |
| TSMC | 16nm | 16nm 160 nm | Available on request |
Specifications
Identity
Part Number
XTAL Oscillators
Vendor
Silicon Creations
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
