Ultra-low jitter, low-power ring-oscillator-based PLL-3GHz-4GHz

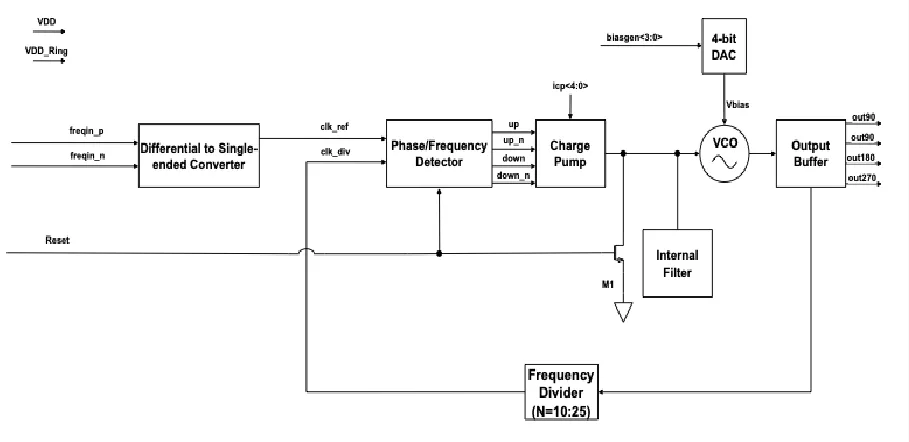

This PLL is implemented in Global Foundries 22FDX CMOS technology. It offers a wide turning range (from 3.0GHz to 4.0GHz) and low power consumption (4.5mW at 4.0GHz). Its ultra-compact footprint makes it an excellent choice for SoC designs that require multiple clock domains. As an integer-N PLL, it provides designers with the flexibility to optimize clock domains across the entire system.

• Output frequency: 3.0GHz - 4.0GHz
• Small area: 120x125 um2
• Low jitter: 3ps-rms jitter at 4.0 GHz
• Low power: 6mW at 7.5GHz
• Reference clock: 125MHz
• Programmable integer divider
• Outputs with different phases (0°, 90°, 180°, and 270°)
• GF 22FDX CMOS technology

• SoCs requiring multiple-clock domains
• ADC and DAC
• High-speed SerDes

• GDSII layout
• Verilog (or SystemVerilog) model
• Integration support
• DRC, LVS reports
• Datasheet including characterization results
• CDL netlist for LVS
• LEF files
• Verification report
