32-bit/33MHz Multi-Function PCI Target

The PCI-T32MF implements a target-only PCI interface compliant with the PCI 2.3 specification. It supports a 32-bit address/data bus and operates up to 33 MHz (PCI clock).

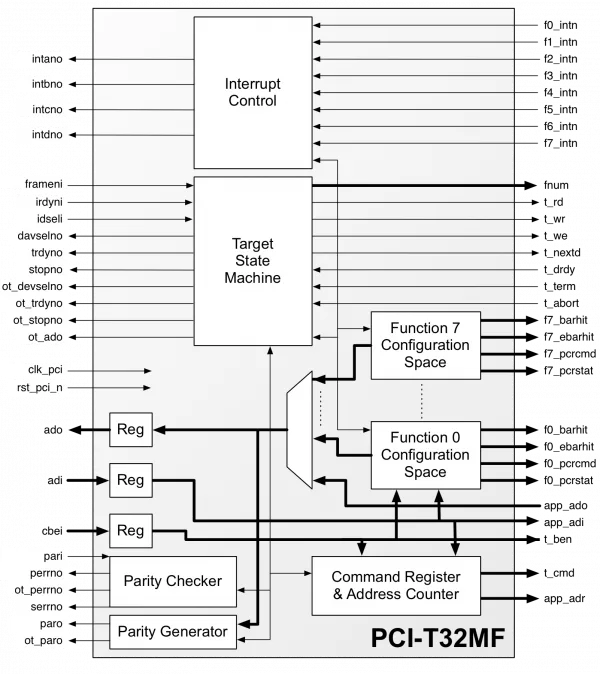

The core offers one to eight independent PCI functions in a single chip, each implementing 64 to 256 bytes of PCI Configuration Space registers as required. Each function supports up to six Base Address Registers, with both I/O and Memory space decoding from 16 bytes up to 4GB.

The PCI- T32MF builds on more than 15 years of CAST PCI IP exper-tise and has been designed for straightforward reuse, with proven design practices that ensure easy integration and smooth technology mapping. The core is available in synthesizable RTL or as a targeted FPGA netlist, and is delivered with everything required for rapid and successful integration and implementation.

• Fully compliant with the PCI Local Bus Specification, Revision 2.3.
• 33 MHz performance (PCI clock frequency)
• 32-bit datapath
• Full Target functionality, with support for these commands:
  • Configuration Read, Configuration Write
  • Memory Read, Memory Write, Memory Read Multiple (MRM), Memory Read Line (MRL), Memory Write and Invalidate (MWI)
  • I/O Read, I/O Write
• Zero wait states burst mode
• Support all interrupt pins (INTA#, INTB#, INTC#, INTD#)
• Type 0 Configuration space
• Supports all Base Address Registers
• Supports backend initiated target retry, disconnect and abort
• Parity generation and parity error detection
• Silicon-proven
