3.2GHz Analog PLL for Spread Spectrum Clock Generator IP

3.2GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 12nm FFC

TSMC 12nm FFC Available on request View all specifications

Overview

The AT12CPLL0003SG3P2G18V1A is a 3.2GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 12nm FFC (FinFET Compact) process technology.

Operating Condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.6 1.98 V
Operating Voltage (VDD) 0.72 0.88 V
Junction Temperature -40 125 °C
Input Clock — Duty 20 80 %
Input Clock — Rise / Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 1600MHz to 3200MHz
  • Output frequency range: 400MHz to 3200MHz
  • Input frequency range: 10MHz to 200MHz
  • Multiplying
    • Output frequency/Input frequency: 2 to 320
  • Fractional multiplying available
  • SSC function available
    • Modulation frequency
      • 20kHz to 60kHz
    • Modulation depth
      • -1% to -6% down spread
      • ±0.5% to ±3% center spread
  • Divider
    • 33-bit feedback divider
    • 3-bit input divider
  • Power-down mode
  • Process: TSMC 12nm FFC

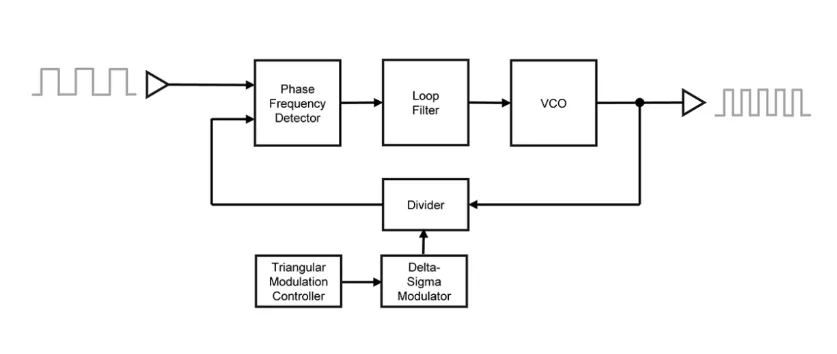

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC Available on request

Specifications

Identity

Part Number
AT12CPLL0003SG3P2G18V1A
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download
