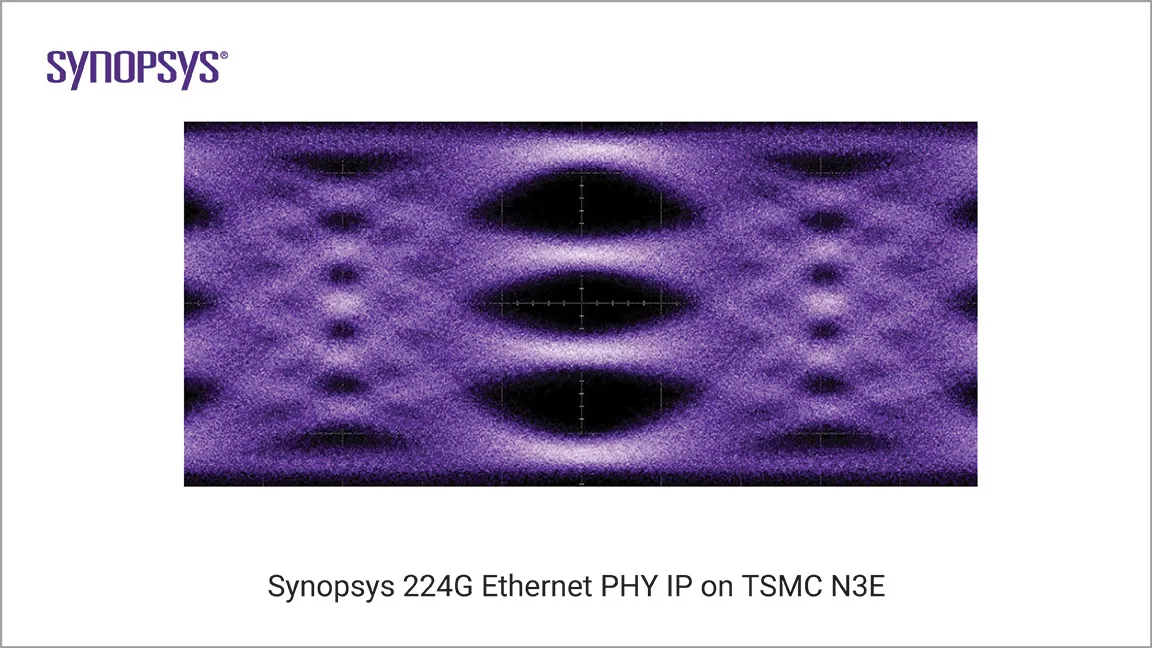

The 224G Ethernet PHY IP, an integral part of the high-speed SerDes IP portfolio, meets the growing high bandwidth and low latency needs of high-performance data center applications. Using leading-edge design, analysis, simulation, and measurement techniques, the 224G Ethernet PHY delivers exceptional signal integrity and jitter performance that exceeds the IEEE 802.3 and OIF standards electrical specifications.
The area efficient PHY demonstrates zero post-FEC BER with ultra-high power efficiency for upcoming OSFP and OSFP -XD form factors. The 1.25-224Gbps PHY supports Pulse-Amplitude Modulation 4 and Non-Return-to-Zero (NRZ) signaling to deliver up to 1.6T Ethernet in an eight lane configuration.
The configurable transmitter and advanced DSP-based receiver with analog-to-digital converter (ADC) enable designers to control and optimize signal integrity and performance. The CCA algorithm provides a robust performance across voltage and temperature variations. The low jitter PLLs and multi-loop clock and data recovery circuits provide robust timing recovery and better jitter performance, while the embedded bit error rate (BER) tester and internal eye monitor provide on-chip testability and visibility into channel performance.
The PHY integrates with the the Physical Coding Sublayer and Digital Controllers/Media Access Controller (MAC) IP solutions to reduce design time and to help designers achieve first-pass silicon success.
Combined with the vendor’ routing feasibility study, packages substrate guidelines, signal and power integrity models, and thorough crosstalk analysis, the vendor provides a comprehensive 224G Ethernet PHY solution for fast and reliable SoC integration.
