What is 16 state DVB-RCS2 Turbo Encoder?
16 state DVB-RCS2 Turbo Encoder is a Channel Coding IP core from Small World Communications listed on Semi IP Hub.
Vendor:
Small World Communications
Category:
Channel Coding
16 state DVB-RCS2 Turbo Encoder
This is a 16 state DVB-RCS2 compatible parallel concatenated turbo encoder.
Overview
This is a 16 state DVB-RCS2 compatible parallel concatenated turbo encoder.
Key features
- 16 state DVB-RCS2 compatible
- Rate 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 6/7, 7/8 with reverse output option
- Automatic puncturing
- 48 to 2048 or 5120 bit data length
- Up to 344 Mbit/s encoding speed
- 2-bit or 6-bit parallel encoded data out
- DVB-RCS2 or optional interleaver parameters
- 365 6-input LUTs
- Available as VHDL core for Xilinx FPGAs under SignOnce IP License. Intel (Altera), Lattice and Microsemi (Actel) FPGA or ASIC cores available on request.

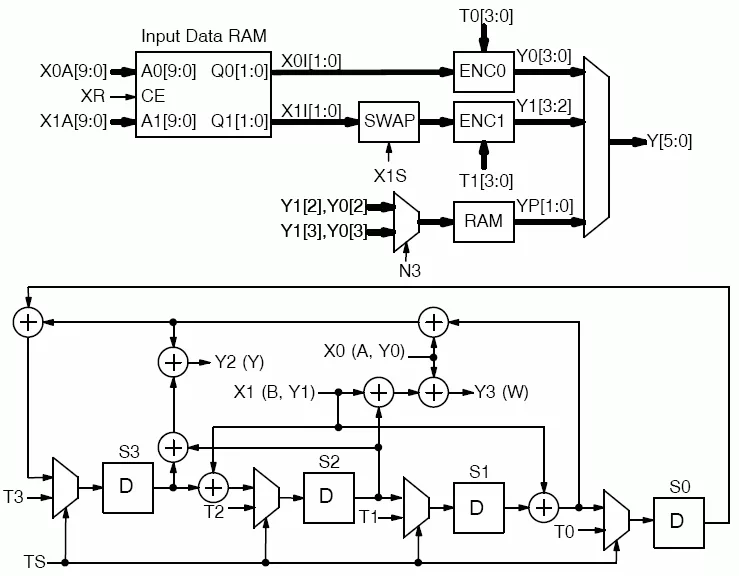

Block Diagram
PCE04D block diagram
What’s Included?
- All Licenses
- VHDL Core
- Test vector generation software
- VHDL ASIC License
- VHDL Core
Specifications
Identity
Part Number
PCE04D
Vendor
Small World Communications
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
