What is 1237 to 1606 MHz Voltage controlled oscillator?
1237 to 1606 MHz Voltage controlled oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
Oscillator
1237 to 1606 MHz Voltage controlled oscillator
Voltage-controlled oscillator is the generator that can be tuned over a wide range of frequencies by applying a control voltage t…
Overview
Voltage-controlled oscillator is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it. This structure consists of two VCO cores: HF VCO for L1 (1590…1606 MHz) band and LF VCO for L2 (1237…1259 MHz) band which outputs are multiplexed. The VCO output signal can be fed to internal blocks or to external devices through buffer LOout. Also it is able to work with an external generator signal from a buffer LOin.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.
Key features
- iHP SGB25V
- Low phase noise
- Wide frequency range
- Adjustable output amplitude
- Low current consumption
Block Diagram

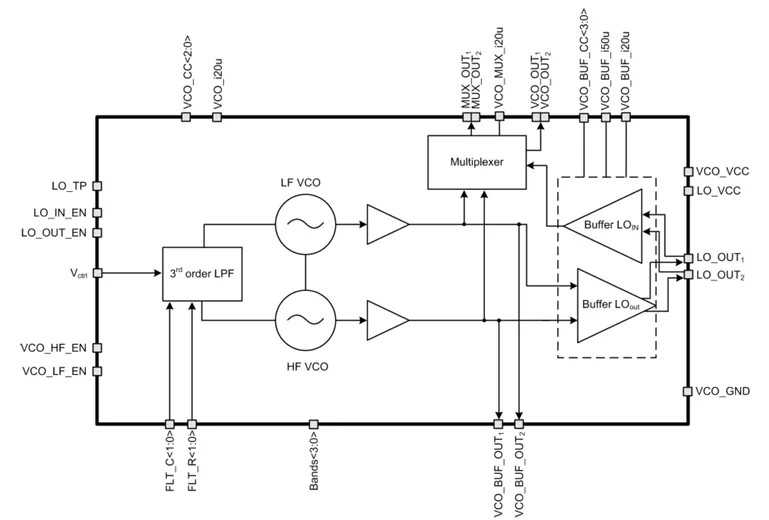

250iHP_VCO_01 block diagram
Applications
- Phase-locked loop synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
