Overview

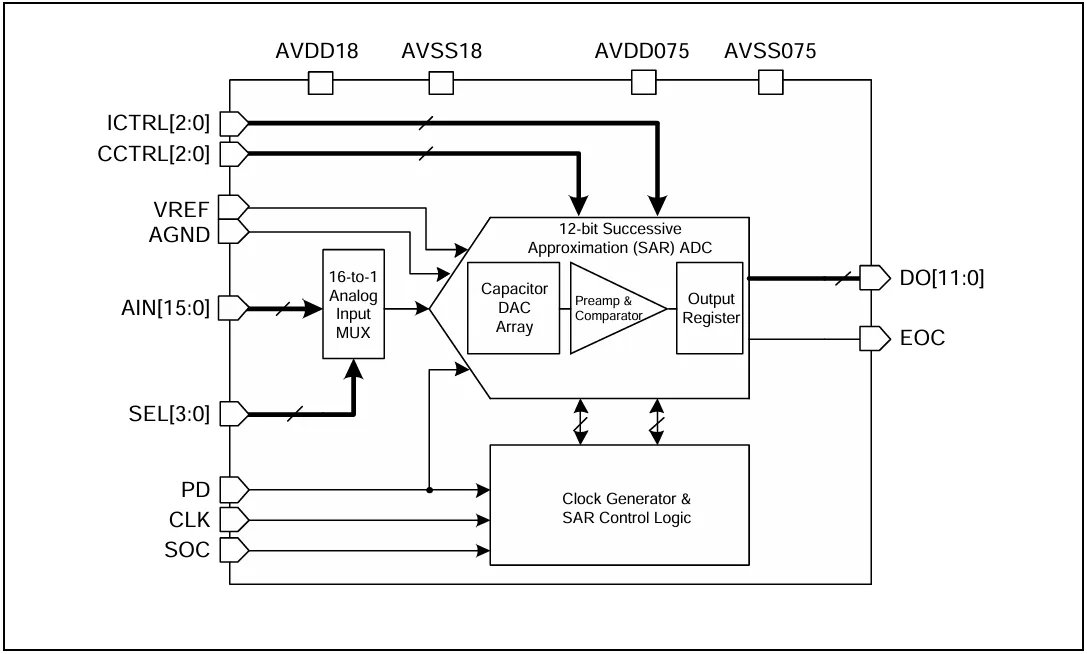

The sf_adc0802x_ln08lpp_306011 is a 1.8V/0.75V dual supply-voltage 16-ch 12-bit analog-to-digital converter (ADC) that supports conversion rate (FS) up to 1MS/s, designed in 8nm CMOS FinFET process. It consists of a 16-to-1 analog input MUX, a successive approximation (SAR) type monolithic ADC, a clock generator, and level-shifters for low voltage digital interface.
The sf_adc0802x_ln08lpp_306011 converts an analog input signal to 12-bit digital output codes, providing an on chip sample-hold and power-down control. The input range is typically 0V to 1.8V. The 16-to-1 analog input MUX selects one of the 16 analog input channels to be sampled and converted. The power consumption of the sf_adc0802x_ln08lpp_306011 in normal-operation mode is 0.8mW at 1MS/s.
The device operates with two input clocks, the main operation clock (CLK) and the sampling clock (SOC). The frequencies of CLK and SOC are 20MHz with 50% duty cycle and 1MHz with 30% duty cycle, respectively. The sf_adc0802x_ln08lpp_306011 is suitable for mobile application processor, battery checker, portable equipment, and low power application.
