1.8GHz Analog PLL for Spread Spectrum Clock Generator IP

1.8GHz Analog PLL for Spread Spectrum Clock Generator IP on TSMC 28nm HPM/HPC

TSMC 28nm HPC +1 Available on request View all specifications

Overview

The AT28M_PLL0004SG is a 1.8GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 28nm HPM/HPC (High-Performance Mobile/High-Performance Compact) process technology.

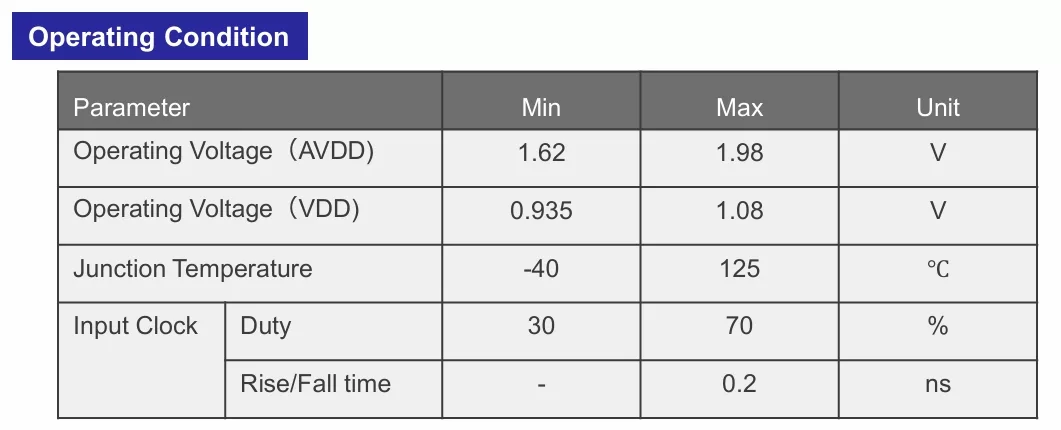

Operating Condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.62 1.98 V
Operating Voltage (VDD) 0.935 1.08 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 900MHz to 1800MHz
  • Output frequency range: 900MHz to 1800MHz
  • Input frequency range: 12MHz to 192MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 60 to 120
  • Divider
    • 7-bit feedback divider and 3-bit input divider
  • Power-down mode
  • Multiple outputs with post-divider
  • SSC function available
    • Spread type: center/down
    • Modulation frequency: 3kHz to 30kHz
    • Modulation depth: 1% to 3% (peak-peak)
  • Standby (STBY) sequence is constraint-free
  • Process: TSMC 28nm HPM/HPC

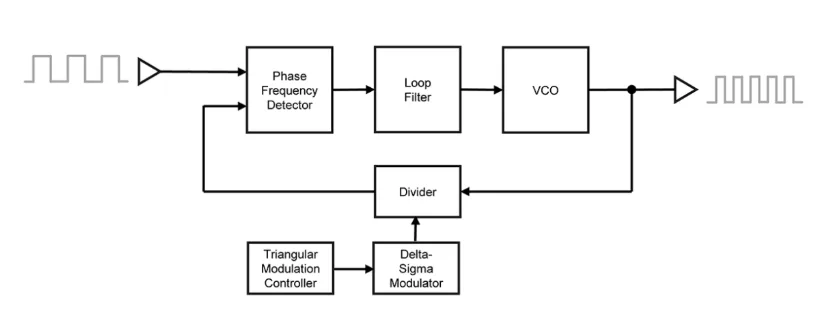

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC Available on request
TSMC 28nm HPM Available on request

Specifications

Identity

Part Number
AT28M_PLL0004SG
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
