1.8GHz Analog PLL for Spread Spectrum Clock Generator IP

1.8GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 28nm HPC+ (High-Performance Compact Plus)

TSMC 28nm HPC+ Available on request View all specifications

Overview

The AT28_PLL0001SG1P8G18V1B is a 1.8GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 28nm HPC+ (High-Performance Compact Plus) process technology.

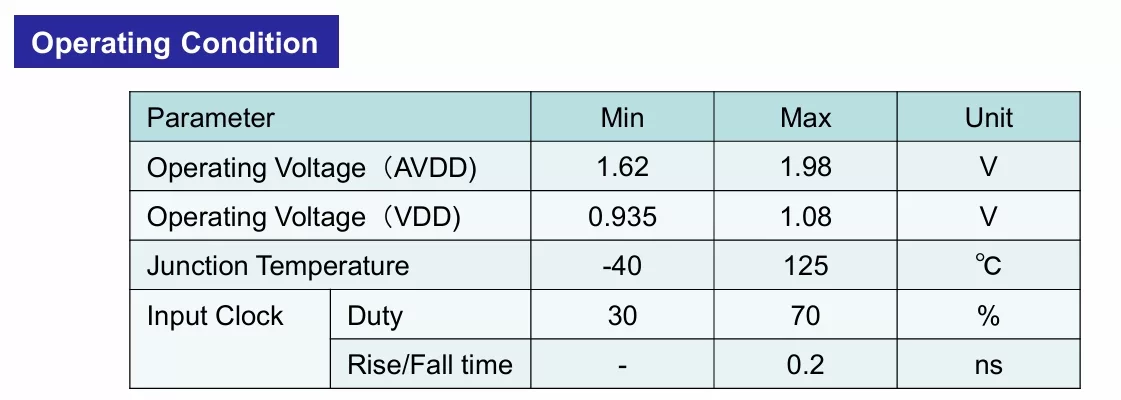

Operating Condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.62 1.98 V
Operating Voltage (VDD) 0.935 1.08 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 900MHz to 1800MHz
  • Output frequency range: 900MHz to 1800MHz
  • Input frequency range: 12MHz to 192MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 60 to 120
  • Divider
    • 7-bit feedback divider and 3-bit input divider
  • Power-down mode
  • Multiple outputs with post-divider
  • SSC function available
    • spread type: center/down
    • modulation frequency: 3kHz to 30kHz
    • modulation depth: 1% to 3% (peak-peak)
  • Standby (STBY) sequence is constraint-free
  • Process: TSMC 28nm HPC+

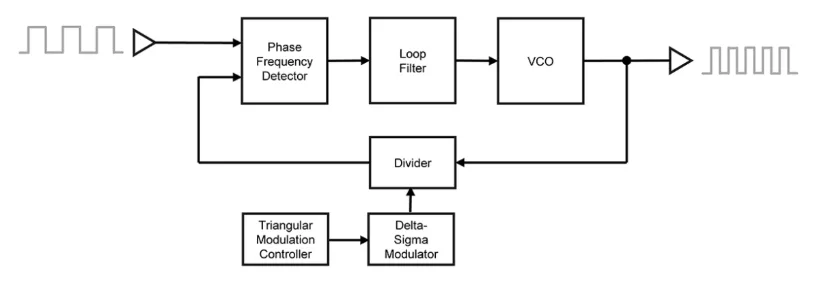

Block Diagram

Click to open fullscreen

Benefits

  • Including Loop-filter
  • VCO operating range : 900MHz - 1800 MHz
  • Output frequency range : 900MHz – 1800 MHz
  • Input frequency range : 12MHz - 192MHz
  • Multiplying (Output freq. / PFD freq.) : 60 - 120
  • Divider
    • 7bit feedback divider and 3bit input divider
  • Power-down Mode
  • Multiple outputs with post-divider
  • SSC function available
    • spread type: center / down
    • modulation frequency: 3kHz – 30kHz
    • modulation depth : 1% – 3% (peak-peak)
  • STBY sequence is constraint-free

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ Available on request

Specifications

Identity

Part Number
AT28_PLL0001SG1P8G18V1B
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download
