1.7GHz Analog PLL for Frequency Multiplying IP

1.7GHz Analog PLL for Frequency Multiplying IP on TSMC 28nm HPM/HPC

TSMC 28nm HPC +1 Available on request View all specifications

Overview

The AT28MPLL0001MP1P7G18V1A is a 1.7GHz analog phase-locked loop (PLL) IP for frequency multiplying using TSMC's 28nm HPM/HPC (High-Performance Mobile/High-Performance Compact) process technology.

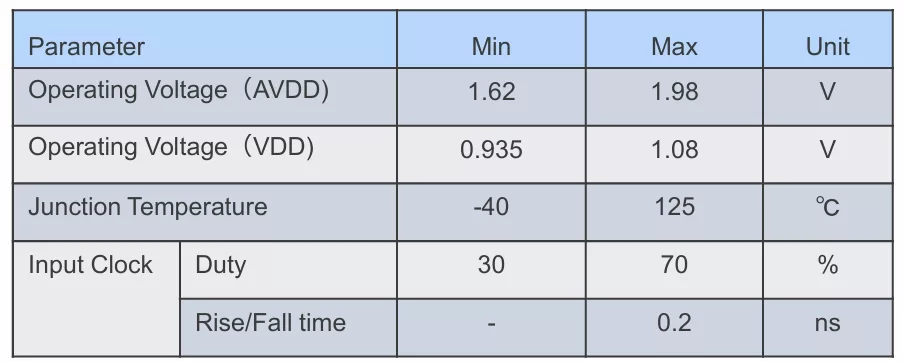

Operating Condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.62 1.98 V
Operating Voltage (VDD) 0.935 1.08 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 850MHz to 1700MHz
  • Output frequency range: 850MHz to 1700MHz
  • Input frequency range: 9.6MHz to 216MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 49 to 127
  • Divider
    • 7-bit feedback divider and 3-bit input divider
  • Power-down mode
  • Multiple outputs with post-divider
  • Power-on sequence is constraint-free
  • Standby (STBY) sequence is constraint-free
  • Process: TSMC 28nm HPM/HPC

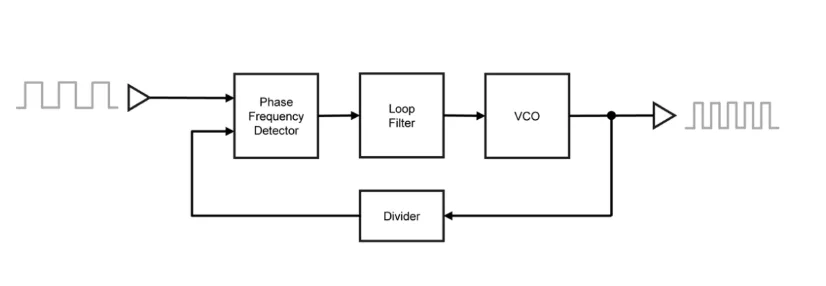

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC Available on request
TSMC 28nm HPM Available on request

Specifications

Identity

Part Number
AT28MPLL0001MP1P7G18V1A
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
