What is 1:6 Fixed Length Visually Lossless Compression/Decompression [RGB/YCbCr]?
1:6 Fixed Length Visually Lossless Compression/Decompression [RGB/YCbCr] is a Data Compression IP core from Techno Mathematical Co., Ltd. listed on Semi IP Hub.
Vendor:
Techno Mathematical Co., Ltd.
Category:
Data Compression
1:6 Fixed Length Visually Lossless Compression/Decompression [RGB/YCbCr]
Fixed Length Visually Lossless Compression [RGB/YCbCr]
Overview
TMC’s original compression algorithm enables to compress and decompress the images to fixed-length with completely independent small block units. By using this technology, the memory capacity, data transmission bandwidth, and power consumption required for image data processing can be significantly reduced.
Optimized design according to the application have achieved a compact circuit size and ultra-low power consumption performance. In addition, by using a small rectangular pixel set (block) as the processing unit, it has the following features.
Model Numbers
| Compression rate | Model Numbers | Image Format/Bit Depth | Processing Block Size | Throughput | |
| Compress | Decompress | ||||
| 1/2 | TM273O3 | RGB / 8bpc | 2 row 2 col. | 1 pixel / clk | 1 pixel / clk |
| 1/2 | TM273Q3 | RGB / 8bpc | 1 row 4 col. | 1 pixel / clk | 1 pixel / clk |
| 1/3 | TM273P3 | RGB / 8bpc | 2 row 8 col. | 4 pixel / clk | 4 pixel / clk |
| 1/3 | TM27363 | RGB / 12bpc | 2 row 8 col. | 2 pixel / clk | 4 pixel / clk |
| 1/4 | TM273I3 | RGB / 8bpc | 4 row 4 col. | 2 pixel / clk | 4 pixel / clk |
| 1/4 | TM273F3 | RGB / 10bpc | 4 row 4 col. | 2 pixel / clk | 4 pixel / clk |
| 1/6 | TM273M3 | RGB / 10bpc | 4 row 4 col. | 2 pixel / clk | 4 pixel / clk |
| 1/3 | TM273H3 | YCbCr444 / 8bpc | 2 row 8 col. | 2 pixel / clk | 4 pixel / clk |
| 1/6 | TM273E3 | YCbCr422 / 10bpc | 4 row 8 col. | 4 pixel / clk | 4 pixel / clk |
Specification
| Compression Format | TMC’s original Format |
| Compression Unit | Block (Block size is fixed for each IP ) |
| Compression rate | Fixed rate per block |
| Rate control | Not necessary |
| Interface Specification | Data and Data Enable |
This IP supports both color spaces of YCbCr and YUV.
Key features
- Random access and Partial updates
- Easy to extract the location of the compressed data
- Easy parallel processing of compression
- Low latency

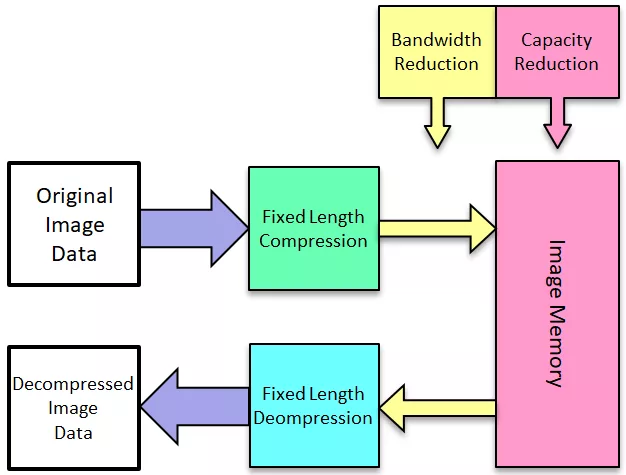

Block Diagram
Click to open fullscreen
Specifications
Identity
Part Number
TM273E3
Vendor
Techno Mathematical Co., Ltd.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Japan
