1.4GHz Analog PLL for Skew Adjust IP

1.4GHz Analog PLL for Skew Adjust IP on TSMC's 28nm HPC+

TSMC 28nm HPC+ Available on request View all specifications

Overview

The AT28_PLL0002SK1P7G18V1B is a 1.4GHz analog phase-locked loop (PLL) IP for skew adjust using TSMC's 28nm HPC+ (High-Performance Compact Plus) process technology.

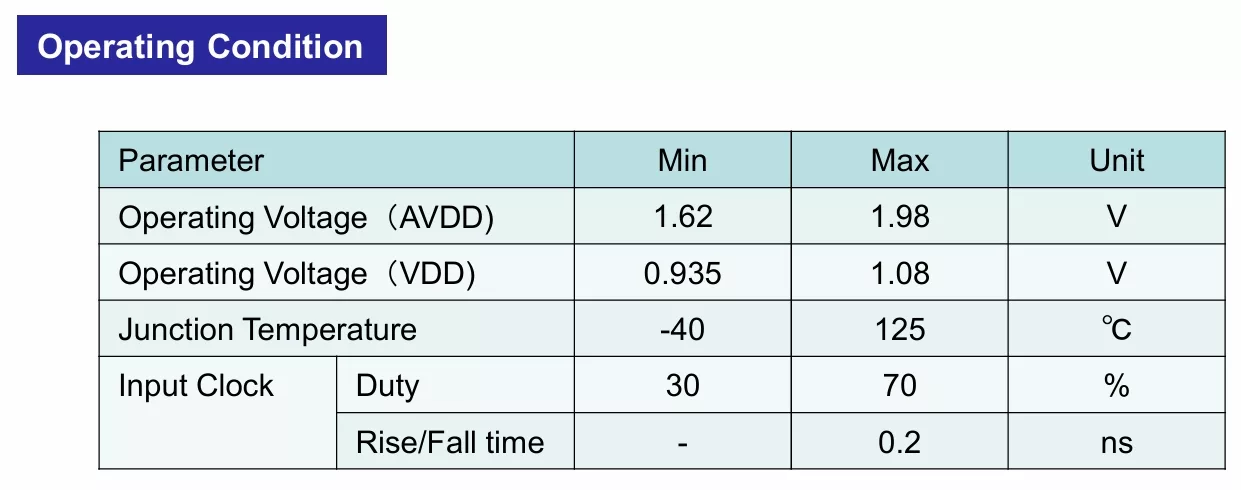

Parameter Min Max Unit
Operating Voltage (AVDD) 1.62 1.98 V
Operating Voltage (VDD) 0.935 1.08 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 672MHz to 1400MHz
  • Output frequency range: 48MHz to 1400MHz
  • Input frequency range: 12MHz to 400MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 14, 28, and 56
  • Divider
    • 4-bit feedback divider, 2-bit input divider, and 4-bit output divider
  • Power-down mode
  • SSC input is not available
  • Power-on sequence is constraint-free
  • Standby (STBY) sequence is constraint-free
  • Process: TSMC 28nm HPC+

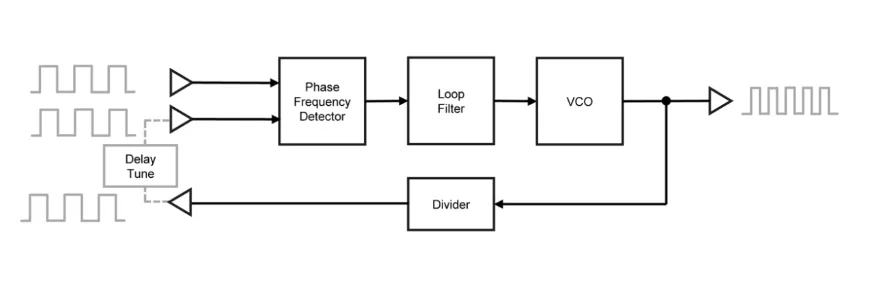

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ Available on request

Specifications

Identity

Part Number
AT28_PLL0002SK1P7G18V1B
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download
