1.25GHz Analog PLL for Frequency Multiplying IP

1.25GHz Analog PLL for Frequency Multiplying IP on TSMC 40nm LP

TSMC 40nm LP Available on request View all specifications

Overview

Analog-PLL For Frequency Multiplying on TSMC 40LP

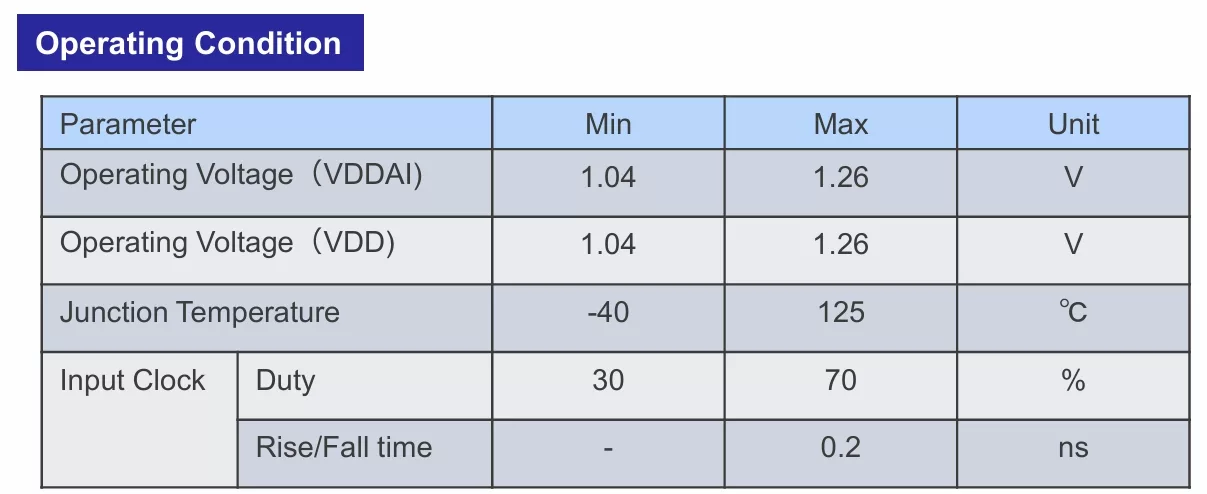

Parameter Min Max Unit
Operating Voltage（VDDAI) 1.04 1.26 V
Operating Voltage（VDD) 1.04 1.26 V
Junction Temperature -40 125 °C
Input Clock Duty 30 70 %
Rise/Fall time - 0.2 ns

Key features

  • Including Loop-filter
  • VCO operating range : 580 -1250 MHz
  • Output frequency range : 72.5 –1250 MHz
  • Input frequency range : 9.6 -100MHz
  • Multiplying (Output freq. / PFD freq.) : 40 -120
  • Divider -7bit feedback divider (N divider) -3bit input divider ( M divider )
  • Selectable feedback loop for skew adjust
  • Power-down Mode is supported
  • Multiple outputs with post-divider
  • SSC Input is available (recommend triangle profile)
  • Power-on sequence is constraint-free
  • STBY sequence is constraint-free
  • Process：TSMC 40LP

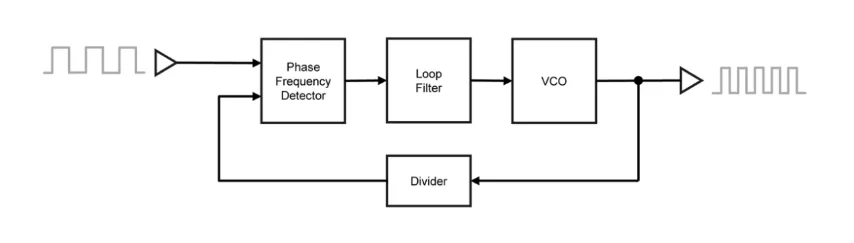

Block Diagram
