Vendor: Techno Mathematical Co., Ltd. Category: Data Compression

1:2 Fixed Length Visually Lossless Compression/Decompression [RGB/YCbCr]

Fixed Length Visually Lossless Compression [RGB/YCbCr]

Overview

TMC’s original compression algorithm enables to compress and decompress the images to ​fixed-length with completely independent small block units. By using this technology, the memory capacity, data transmission bandwidth, and power consumption required for image data processing can be significantly reduced.

Optimized design according to the application have achieved a compact circuit size and ultra-low power consumption performance. In addition, by using a small rectangular pixel set (block) as the processing unit, it has the following features.

Model Numbers

Compression rate Model Numbers Image Format/Bit Depth Processing Block Size Throughput
Compress Decompress
1/2 TM273O3 RGB / 8bpc 2 row 2 col. 1 pixel / clk 1 pixel / clk
1/2 TM273Q3 RGB / 8bpc 1 row 4 col. 1 pixel / clk 1 pixel / clk
1/3 TM273P3 RGB / 8bpc 2 row 8 col. 4 pixel / clk 4 pixel / clk
1/3 TM27363 RGB / 12bpc 2 row 8 col. 2 pixel / clk 4 pixel / clk
1/4 TM273I3 RGB / 8bpc 4 row 4 col. 2 pixel / clk 4 pixel / clk
1/4 TM273F3 RGB / 10bpc 4 row 4 col. 2 pixel / clk 4 pixel / clk
1/6 TM273M3 RGB / 10bpc 4 row 4 col. 2 pixel / clk 4 pixel / clk
1/3 TM273H3 YCbCr444 / 8bpc 2 row 8 col. 2 pixel / clk 4 pixel / clk
1/6 TM273E3 YCbCr422 / 10bpc 4 row 8 col. 4 pixel / clk 4 pixel / clk

Specification

Compression Format TMC’s original Format
Compression Unit Block (Block size is fixed for each IP )
Compression rate Fixed rate per block
Rate control Not necessary
Interface Specification Data and Data Enable

This IP supports both color spaces of YCbCr and YUV.



Key features

  • Random access and Partial updates
  • Easy to extract the location of the compressed data
  • Easy parallel processing of compression
  • Low latency

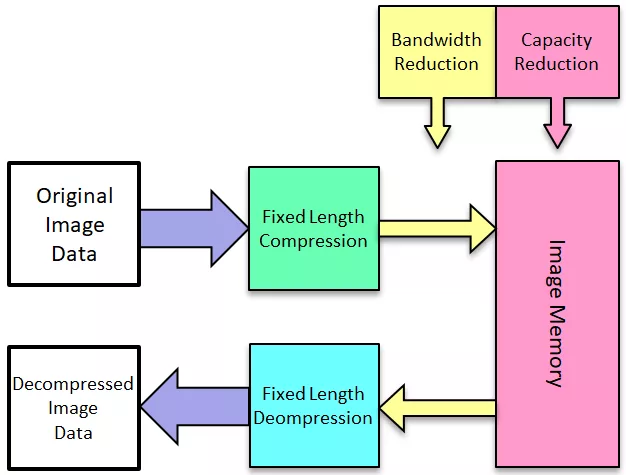

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
TM273O3
Vendor
Techno Mathematical Co., Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
