Vendor: Renesas Category: PLL

1.056GHz Analog PLL for Spread Spectrum Clock Generator IP

1.056GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 40nm Low Power (LP) process technology

TSMC 40nm LP Available on request View all specifications

Overview

The AT40LPLL0000SG1P1G25V1A is a 1.056GHz analog phase-locked loop (PLL) IP for a spread spectrum clock generator (SSCG) using TSMC's 40nm Low Power (LP) process technology.

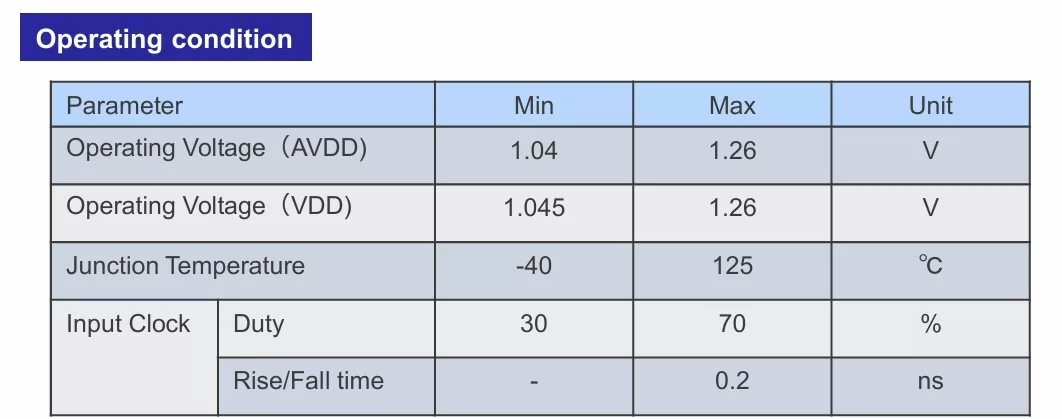

Operating condition

Parameter Min Max Unit
Operating Voltage (AVDD) 1.04 1.26 V
Operating Voltage (VDD) 1.045 1.26 V
Junction Temperature -40 125 °C
Input Clock — Duty 30 70 %
Input Clock — Rise/Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 640MHz to 1056MHz
  • Output frequency range: 80MHz to 1056MHz
  • Input frequency range: 10MHz to 132MHz
  • Multiplying (output frequency/phase frequency detector (PFD) frequency)
    • 8 to 88
  • Divider
    • 7-bit feedback divider and 3-bit input divider
  • Power-down mode
  • Multiple outputs with post-divider
  • SSC function available
    • Spread type: Down
    • Modulation frequency: 20kHz to 33kHz
    • Modulation depth: 2.273% to 3.125%
  • Process: TSMC 40nm LP

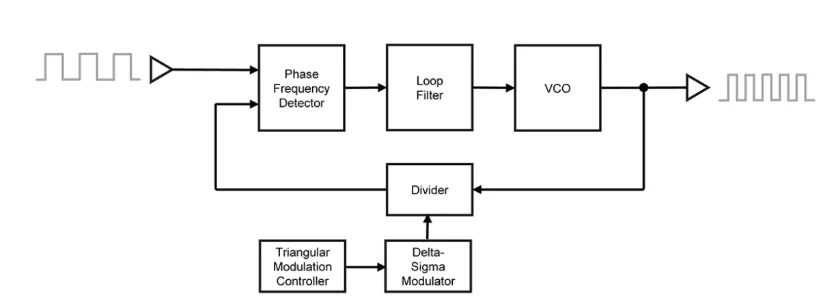

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 40nm LP Available on request

Specifications

Identity

Part Number
AT40LPLL0000SG1P1G25V1A
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
