BitFair: A 12nm Bit-Serial CNN Accelerator with Learnable Early Termination and Adaptive Bit Ordering for Ultra-Low-Power XR Vision

By Ang Li, Chang Gao
Department of Microelectronics, Delft University of Technology, Delft, The Netherlands

Abstract

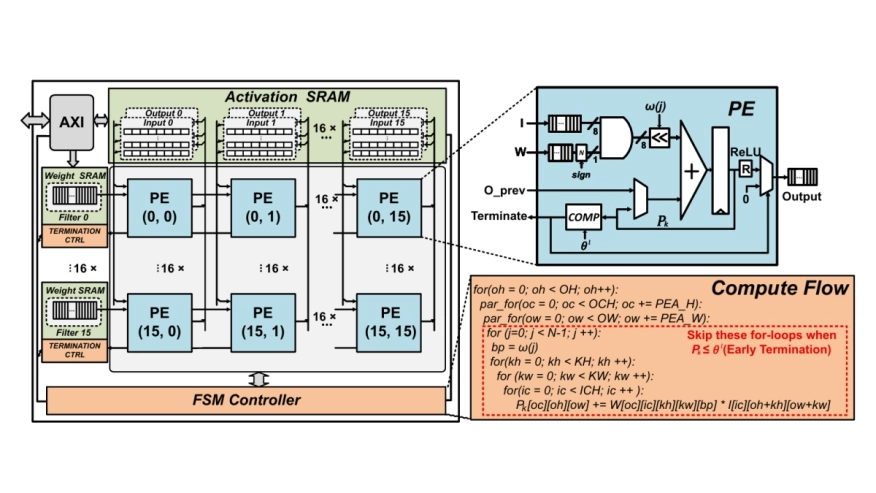

Extended Reality (XR) wearables require always-on perception within tight power envelopes of a few watts and motion-to-photon latency budgets below 20 ms, leaving only a few milliseconds for neural-network inference. Bit-serial computing is attractive for such energy-efficient neural network acceleration, but many existing architectures still process all bits even when ReLU sets the final output to zero. This paper presents BitFair, a software-hardware co-designed bit-serial CNN accelerator with learnable bit-level early termination and adaptive bit ordering, working under the ultra-low-power and strict latency requirements of XR applications. BitFair exploits dynamic bit-level sparsity by learning per-layer thresholds that trigger early termination when partial sums reliably predict that the final ReLU output will be zero. Furthermore, it searches for layer-wise bit orders that prioritize informative bits, maximizing early termination without sacrificing accuracy. A GlobalFoundries 12nm FinFET implementation with a core area of 0.34 mm^2, 104 KB on-chip memory, and voltage scaling from 0.55 to 0.70 V achieves sub-millisecond latency, up to 117.0 BTOPS/W, and 0.07 pJ/SOP. On IBM DVS128 Gesture and N-MNIST, BitFair achieves 96.5% and 97.7% accuracy, respectively, while improving effective energy efficiency by 4.0-22.1x and accuracy by up to 9.2% over prior fabricated XR vision accelerators.

Index Terms — convolutional neural network, edge computing, neural network accelerator, bit-serial computing, software hardware co-design, dynamic sparsity, extended reality
