xHCI Verification IP

The xHCI Verification IP targets the following three vendors:
1. xHC Driver developers,
2. xHCI IP developers (the xHCI VIP act as xHCD and xHCI Monitor),
3. USB3 device developers(By using existing PL/LL with the xHCI).

The xHCI VIP minimize the complexity and efforts needed for above vendors. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design time and the simulation time.

• Compliant with xHCI 1.1, USB3.1, USB3.0, USB2.0 (including errata) and PIPE specifications 3.0, UTMI+ 1.1, ULPI 1.1 specifications.
• Full support for backward compatibility (HS/FS/LS).
• Flexible user interface : AHB/AXI/PCIe with configurable Data width (32,64,128).
• Supports upto 64 device slots, 2 downstream ports and upto 4 interrupters.
• Configurable Device slots, interrupters and Number of Ports.
• Supports all xhci register sets.
• Supports xHCI extended capability registers.
• Supports all commands including optional three optional commands.
• Supports all USB 3.0 transfer types - Control, Bulk (including Stream with HID), Interrupt, Isochronous (including Smart Isoch) upto maximum burst size.
• Supports all USB 2.0 transfer types – Bulk, Control, Isochronous, Interrupt (including HS split transfers).
• Supports USB3.0 and USB2.0 power management.
• Supports optional debug capability.
• Supports loopback for Debug.
• Supports dynamically configurable modes.
• Strong Protocol Monitor with real time exhaustive programmable checks.
• Supports Dynamic as well as Static Error Injection scenarios.
• On the fly protocol checking using protocol check functions, static and dynamic assertion.
• Built in Coverage analysis.
• Graphical analyser to show transactions for easy debugging.

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure highest level of quality
• Availability of Compliance and Regression Test Suites
• 24x5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

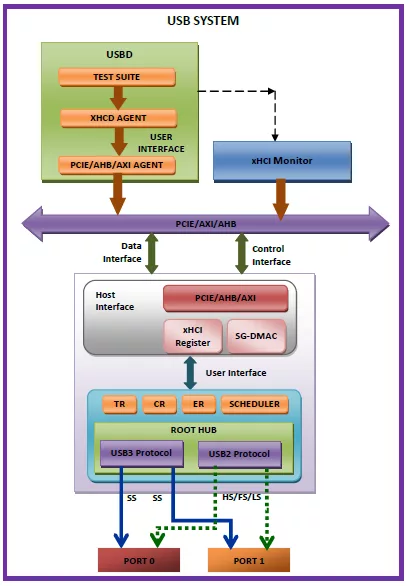

• xHCD Agent
• xHCD
• xHCI Monitor and Scoreboard
• Test Environment & Test Suite :
  • Basic xHCI Specific Tests
  • Directed & Random Tests
  • Assertions & Cover Point Tests
  • Error Injection Tests
  • Protocol Conformance Tests
• Integration Guide, User Manual and Release Notes
