Wide band 3Ghz-6GHz integer phase-locked loop

065TSMC_PLL_08 is an integer-N phase-locked loop frequency synthesizer (PLL) based on fully integrated wide band LC-VCO with rang…

Contact Provider Request Datasheet
TSMC 65nm GP Silicon Proven View all specifications

Overview

065TSMC_PLL_08 is an integer-N phase-locked loop frequency synthesizer (PLL) based on fully integrated wide band LC-VCO with range from 3 GHz to 6 GHz with good phase noise performance. It works with
reference frequency from 25 MHz XTAL oscillator or external signal source with frequency up to 500 MHz. Phase-frequency divider compare frequency can be equal or 2,3,4...63 times lower than reference. VCO frequency N-divider has programmable coefficient of division with step 1 in range 4 to 2047. Phase-frequency detector has built-in analog and digital lock detector circuits. Charge pump scheme with ADC and adjustable output current allow compensation VCO gain variation within band and keep loop gain constant. Integrated low-pass loop filter has adjustable values of resistance and capacitance for tune loop and get best phase-noise performance.
The PLL is designed using TSMC 65 nm CRN65LP technology.

Key features

  • TSMC CMOS 65 nm
  • Integer-N phase-locked loop
  • Wide frequency range from 3 GHz to 6 GHz
  • Good phase noise perfomance
  • Fully integrated VCO
  • Fully integrated loop filter with ability to use external loop filter
  • Built-in lock detection circuit
  • High reference frequency spurious rejection
  • Adjustable value of charge pump output current
  • Built-in ADC for measuring VCO control voltage value
  • Digital loop gain compensation
  • Low current consumption
  • Adjustable power supply voltage
  • Portable to other technologies (upon request)

Block Diagram

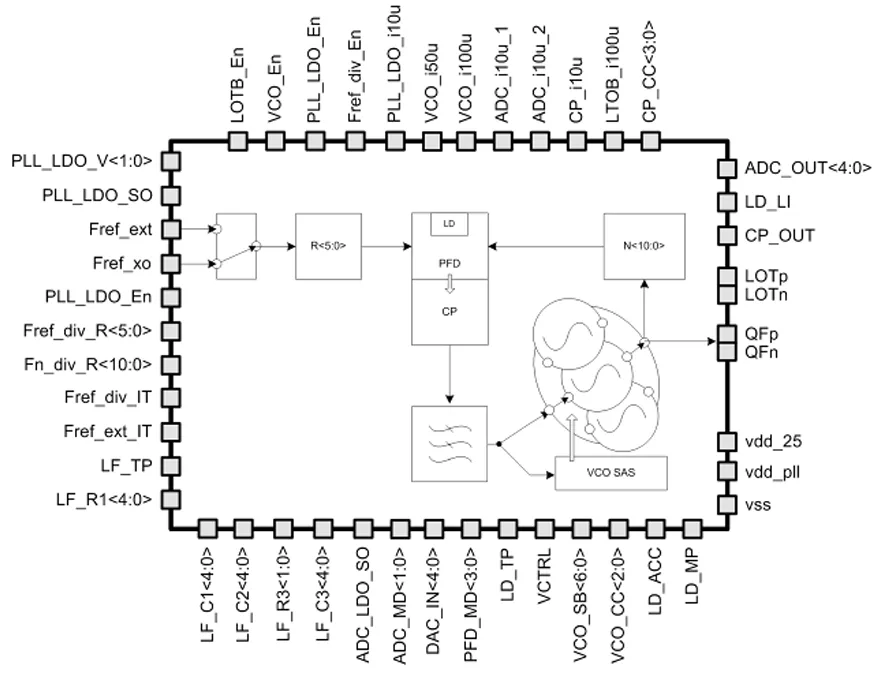

065TSMC_PLL_08 block diagram

Applications

  • RF receivers, transmitters, transceivers
  • High frequency clock generation

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 65nm GP Silicon Proven

Specifications

Identity

Part Number
065TSMC_PLL_08
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
