USB Type-C and Power Delivery Verification IP

The USB Type-C and Power Delivery VIP is fully compliant with standard USB PD Rev 3.1 V1.8, TYPE-C-Rev2.2 specifications and Type-C Port-Controller Interface-Spec-Rev2.0 Ver1.3. This VIP is a light weight with an easy plug-and-play interface so that there is no hit onthe design cycle time.

• Compliant with standard USB PD Rev 3.1 V1.8, Type-C Rev2.2 & USB type C Port controller interface Rev2.0 V1.3.
• Supports enabling USB4 (Gen 2/Gen 3/Gen 4) over type C Connectors.
• Supports both Standard Power range (SPR) and Extended Power range (EPR) modes of operation.
• Supports all Fixed voltage supply, Programmable power supply (PPS) and Adjustable Votlage supply (AVS).
• Suppports collision avoidance in ATM sequence between source & sink.
• Supports TCPM Provider, TCPM Consumer, TCPC Provider, TCPC Consumer, Provider, Consumer, Consumer/Provider, Provider/ Consumer testing.
• Supports Power Negotiation (with user controllable source/sink power capabilities).
• Supports Role swapping (PR_swap, DR_swap, FR_swap and Vconn swap).
• Supports VDM messages for Alternate mode to configure SS signaling lines to Display port.
• Supports Built In Self Test (BIST).
• Supports Hard Reset, Soft Reset, and Cable Reset.
• Supports GoToMin, Get_Sink_Cap and other control messages.
• Support BMC signaling of Physical Layer.
• Supports SOP*, Hard Reset, Cable Reset ordered set generation.
• Supports Dead Battery Operation Testing.
• Supports Optional communication with System Policy over USB.
• Supports attach/ detach and plug orientation detection.
• Rich set of configuration parameters to control Type-c functionality.
• Supports debug accessory mode.
• Supports functionality of DRP, DFP, UFP and DRP_accessory.
• Supports multiplexing for transmit & receive path of SS & HS signaling.
• Supports Randomization on PD objects fields such as volatage and current with or without error injection.
• Supports Type-c Voltage and Current Advertisement.
• Supports dynamically configurable modes.
• Strong Protocol Monitor with real time exhaustive programmable checks.
• Supports Dynamic as well as Static Error Injection scenarios.
• On the fly protocol checking using protocol check functions, static and dynamic assertion.
• Built in Coverage analysis.
• Provides a comprehensive user API (callbacks).
• Graphical analyser to show transactions for easy debugging.

• Available in native System Verilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

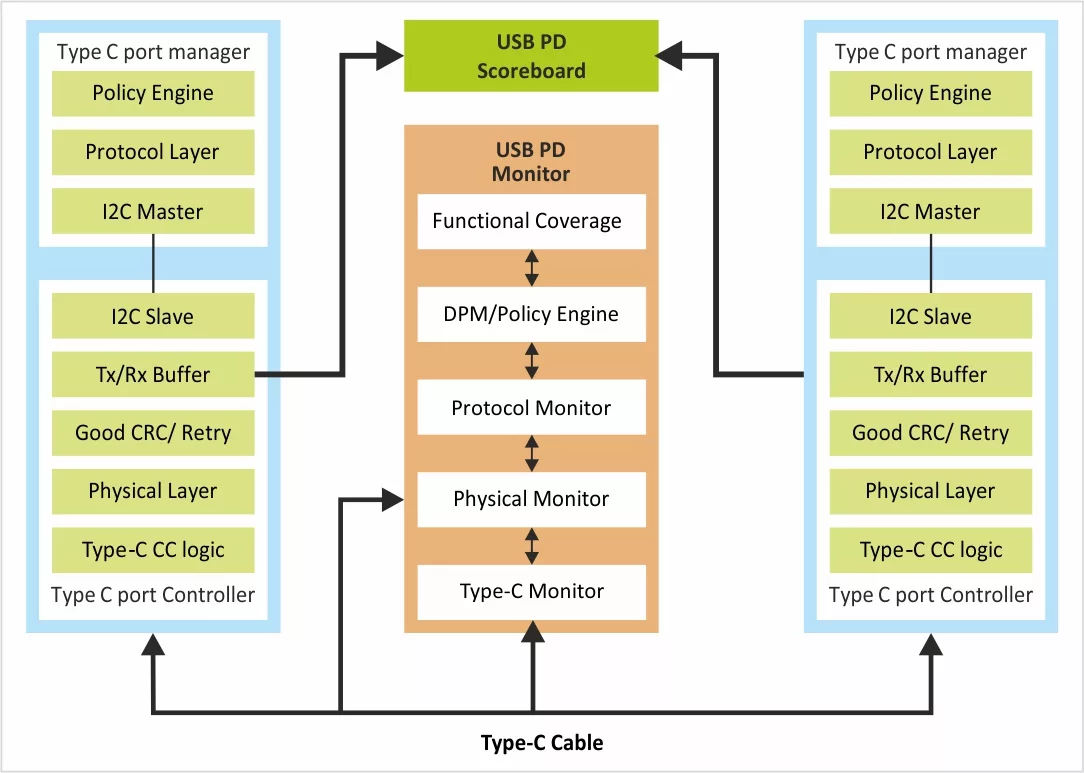

• USB Type C and Power Delivery BFM
• USB Type C and Power Delivery Bus Monitor
• USB Type C and Power Delivery Scoreboard
• Test Environment & Test Suite :
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
• Integration Guide, User Manual and Release Notes
• GUI analyser to view simulation packet flow
