Simplified Integration USB PD Capable Type-C Source IP

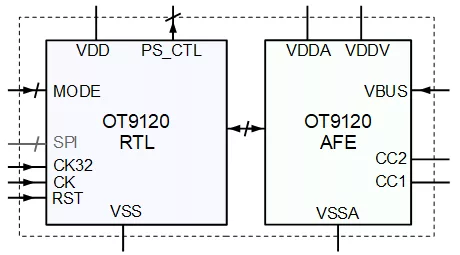

This OT9120 is an easy to integrate and configure Type-C source port with Power Delivery. It is delivered as RTL and an Analog Front End hard macro. No processor, software, or external memory is required. Re-uses much of Obsidian’s mature and widely used Type-C logic and analog IP. The IP controls the power supply directly. An external IP is available for clock generation which does not require chip pins. Also a voltage and current reference IP for use when this not availble in the design. Standard current and voltage PDOs are supported, but may be altered with a serial port. Power supply PS_CTL outputs and control an attached power supply directly, either through resistors or connection through logic as required.

• USB PD 3.2, and Type-C compliant.
• Simplified source only port.
• Pin controlled PDO selection
• Option for SPI custom PDO’s.
• Integrated Policy Engine.
• All RTL logic. No MPU or memory required.
• RTL config or pin config or SPI PDO config.
• Single 12MHz clock + 32KHz low power clock.
• Low power wake function.
• 0.5mm2 die area in 130nm.
• Optional V_CONN outputs of 1W or 6W.
• Connects to strait through IO pads.
• Available in 55, 65, 110, 130, 150, and 180nm processes. 6 week porting available for other processes.
• FPGA based development board available.

• Rapid Type-C source implememention.
• Type-C Power Delivery Source
• Simple upgrade to existing power chip.

• Verilog simulation model.
• Verilog RTL.
• Timing files.
• AFE macro in GDS and LEF forms.
• AFE Macro CDL files.
• Design review spice files.
• Integration notes.
• Production test notes.
• Data sheet.
