USB 3.2 - Validates high-speed USB designs for protocol compliance and performance
XtremeSilica’s USB 3.2 Verification IP offers a comprehensive solution for validating designs based on the USB 3.2 specification.
Overview
XtremeSilica’s USB 3.2 Verification IP offers a comprehensive solution for validating designs based on the USB 3.2 specification. It supports SuperSpeed+ data rates up to 20 Gbps, ensuring protocol compliance, power management, and seamless interoperability across versions.
The product’s advanced features include dynamic link negotiation validation, error injection, and robust debugging tools. It enables testing across a range of devices, ensuring high-speed data transfer and reliable performance in both legacy and modern USB designs
Key features
- SuperSpeed+ Data Rate Support: Validates USB 3.2 designs with data rates up to 20 Gbps, ensuring high-speed data transfer for performance-critical applications. Enables testing for cutting-edge USB implementations.
- Backward Compatibility: Supports testing across USB 3.1, USB 3.0, and USB 2.0 devices, ensuring smooth operation with older USB versions and broader system compatibility.
- Protocol Compliance Checking: Verifies compliance with USB specifications at both the link and physical layers, ensuring designs meet industry standards for reliability.
- Advanced Error Injection: Simulates a wide range of errors to test system recovery and robustness, ensuring fault tolerance in real-world scenarios.
- Dynamic Link Negotiation Validation: Ensures proper negotiation of speed and lane configurations, optimizing performance based on device capabilities.

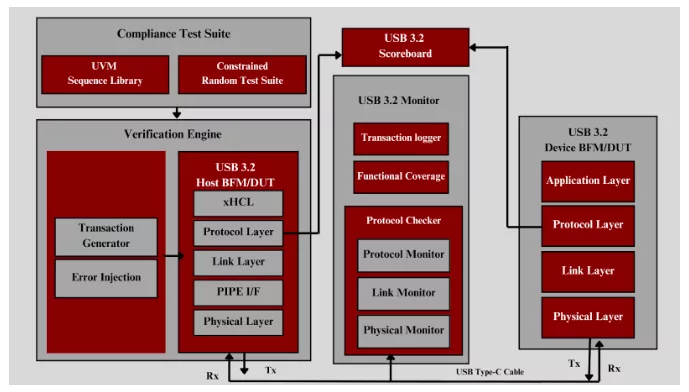

Block Diagram
USB 3.2 block diagram
Specifications
Identity
Part Number
USB 3.2
Vendor
XtremeSilica
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
