SuperSpeed USB 3.0 Dual Role Device Controller, Configurable for SSIC and HSIC

The vendor provides designers with silicon-proven, configurable USB 3.0 Controllers that are compliant with the USB-Implementers …

Contact Provider Request Datasheet

Overview

The vendor provides designers with silicon-proven, configurable USB 3.0 Controllers that are compliant with the USB-Implementers Forum (USB-IF) USB 3.0 specification. The USB 3.0 controllers provide the lowest possible gate count, efficient power management optimized with dual power rails, and USB 3.0 PIPE and USB 2.0 UTMI/UTMI+ interfaces for PHYs. This comprehensive solution also includes support for Dual Role Device (DRD), xHCI Host, and Device Controllers and SuperSpeed InterChip (SSIC), High Speed InterChip (HSIC), and OTG 2.0 features.

The USB 3.0 Controller IP offers the flexibility required for high-volume, fast turnaround consumer applications. Configuration options maximize SoC design performance and minimize CPU interrupts, while flexible parameters enable easy integration into low- and high-latency systems.

The USB Controller IP has shipped in over one billion units for leading electronics companies worldwide. Using the USB IP significantly reduces development time and engineering risk, bringing USB-based SoCs to market faster.

The USB IP is the most certified IP solution in the industry. With over 3,000 design wins, the vendor's complete USB IP solution--consisting of controllers, PHYs, verification IP, drivers, and IP prototypes--enables designers to lower integration risk and speed time-to-market.

Key features

  • Supports SuperSpeed USB power savings modes, Uniform Power Format (UPF) and dual power rails
  • Lowers overall system power by design
  • Configurable data buffering options to fine-tune performance/area trade-offs
  • Host supports SuperSpeed, High-Speed, Full-Speed, and Low-Speed operation
  • Host Controller compatible with common operating systems that support the xHCI standard, such as Windows 8 and Linux
  • Device supports SuperSpeed, High-Speed, and Full-Speed operation
  • DRD supports either Host or Device operation

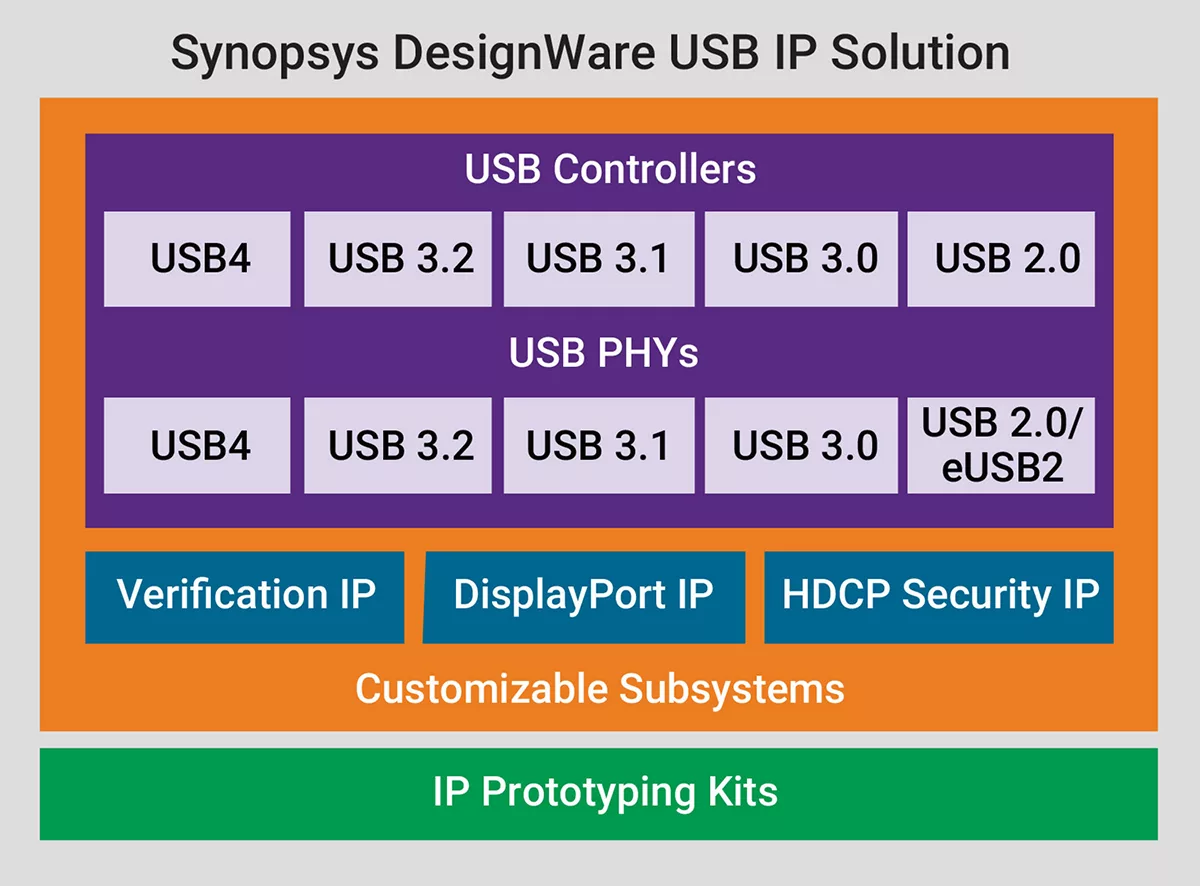

Block Diagram

dwc_usb_3_0_drd block diagram

Specifications

Identity

Part Number
dwc_usb_3_0_drd
Vendor
Synopsys, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Synopsys, Inc.
HQ: USA
Contact Synopsys, Inc.
