Streaming Multi-port SDRAM Memory Controller

The Streaming Multi-port SDRAM Memory Controller IP Core provides a native RD or WR local port bus interface to SDRAM memory.

Contact Provider Request Datasheet
Controller View all specifications

Overview

The Streaming Multi-port SDRAM Memory Controller IP Core provides a native RD or WR local port bus interface to SDRAM memory. The core integrates: a burst memory controller core, a port arbitrator, and intelligent look-ahead FIFO controller into one easy-to-use core. It supports SDR, DDR, DDR2, and Mobile DDR memory devices in a single IP Core assuring designers of a smooth low-risk migration path with changing SDRAM technology.

The core supports up to ten independently clocked streaming data sources operating from one shared high-bandwidth memory system. Using the intuitive Microtronix GUI interface, with a few clicks of a mouse, designers can create a multi-port system, a design task which would normally take several man-months of effort!

Key features

  • 200/333 MHz (400/666 Mbps) Cyclone / Stratix memory performance
  • SDR, DDR, DDR2, and Mobile DDR SDRAM memory devices
  • Up to 10 native RD or WR ports
  • Memory data width: 8/16/32/64-bit
  • Local bus width from 8 to 128-bits
  • Configurable FIFO depth: 16 to 2048 bytes
  • Intelligent SDRAM burst caching minimizes wait-states
  • Layout independent DDR/DDR2 Round-Trip capture scheme
  • Requires only single PLL with 4 clock outputs
  • Multiple time domain clocking
  • Configuration GUI streamlines design process
  • Supports Cyclone II, III, IV-E, IV-GX, Stratix II, II-GX, III, Arria GX/II-GX

Block Diagram

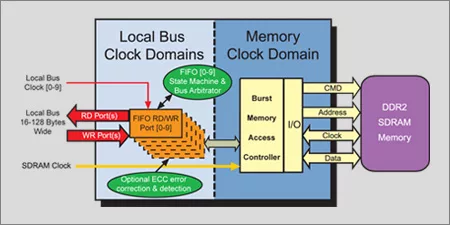

1588076 block diagram

Benefits

  • MegaWizzard GUI for ease of configuration
  • DQS data capture clocking simplifies MDDR/DDR/DDR2 PCB design constraints
  • Configurable FIFO optimizes streaming video applications
  • Configurable memory and local bus data width
  • Independent time domain clocking optimizes memory bandwidth
  • Synopsis TimeQuest support ensures timing closure (except for SDR memory devices Source-synchronous Data Capture)

What’s Included?

  • Easy to use configuration GUI
  • VHDL IP functional simulations models
  • On Die Termination (ODT) improves signal integrity
  • IP Core License includes 1 year of updates
  • Altera OpenCore Plus evaluation
