What is Scatter-Gather DMA Controller?
Scatter-Gather DMA Controller is a DMA IP core from Lattice Semiconductor Corp. listed on Semi IP Hub.
Vendor:
Lattice Semiconductor Corp.
Category:
DMA
Scatter-Gather DMA Controller
Direct Memory Access (DMA) is a technique for transferring blocks of data between system memory and peripherals without a process…
Overview
Direct Memory Access (DMA) is a technique for transferring blocks of data between system memory and peripherals without a processor (e.g., system CPU) having to be involved in each transfer. DMA not only offloads a system’s processing elements, but can transfer data at much higher rates than processor reads and writes.
Scatter-Gather DMA augments this technique by providing data transfers from one non-contiguous block of memory to another by means of a series of smaller contiguous-block transfers. The Lattice Scatter-Gather DMA Controller core implements a configurable, multi-channel, WISHBONE-compliant DMA controller with scatter-gather capability.
Scatter-Gather DMA augments this technique by providing data transfers from one non-contiguous block of memory to another by means of a series of smaller contiguous-block transfers. The Lattice Scatter-Gather DMA Controller core implements a configurable, multi-channel, WISHBONE-compliant DMA controller with scatter-gather capability.
Key features
- Supports up to 16 physical channels
- Up to 8 sub-channels per physical channel
- Four priority levels using round-robin arbitration (weighted or simple)
- WISHBONE bus widths from 8 to 128 bits
- Simple DMA, split transfers, scatter-gather
- Direct interface to external RAM for packet buffering
- Autonomous and hardware-directed retry
- Supports WISHBONE burst and classic-cycle transfers
- Supports centralized and distributed DMA control architectures
Block Diagram

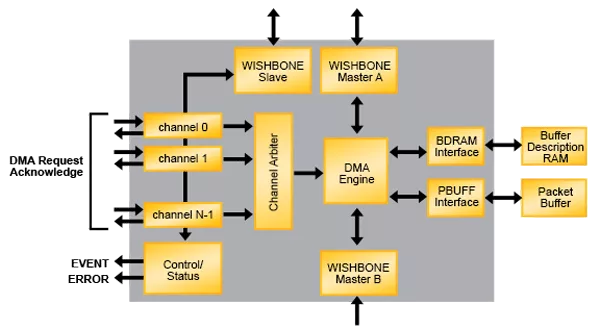

DMA-SG block diagram
Specifications
Identity
Part Number
DMA-SG
Vendor
Lattice Semiconductor Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
